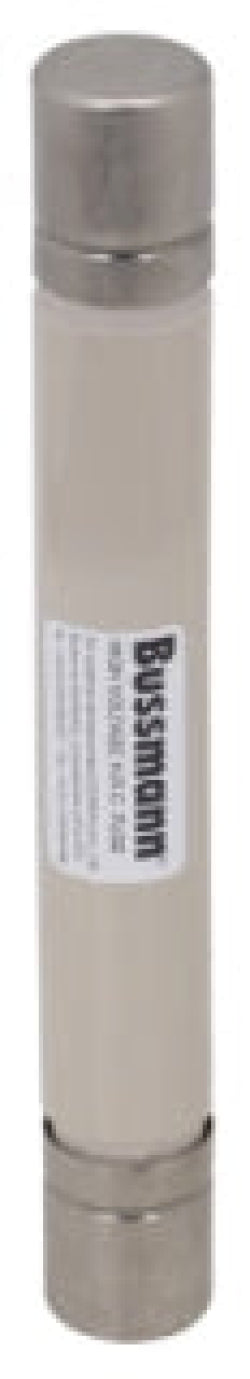

Bussmann 7.2AMWNA5.0E - Medium Voltage Power Fuse 5A (Class E, 50kA AIC)

Bussmann 7.2AMWNA5.0E is a medium voltage power fuse designed for overcurrent protection in high-voltage electrical systems. It features a 7200V voltage rating and a 5A current rating, providing reliable circuit interruption. The fuse is constructed as a single-barrel unit with a 0.81-inch diameter and requires fuse clips with 4.79-inch center spacing for proper installation. This Class E rated fuse complies with industry standards for medium voltage protection and offers an interrupting rating of 50kA at 7.2kV. It is typically applied in industrial power distribution systems, transformer protection, and utility applications where robust overcurrent protection is required.

Key Features & Specifications

• Type: Medium Voltage Power Fuse, Current Limiting, Single Barrel
• Voltage Rating: 7200V AC
• Current Rating: 5A
• Dimensions: 0.81" Diameter
• Standards: Class E Rated
• Applications: Industrial Power Distribution, Transformer Protection, Utility Systems
• AIC rating: [email protected]
• Class Rating: E
• Barrels: 1
• Clip Center: 4.79"
• Weight: 10 lb

Product Identification

• GTIN: 00051712126243
