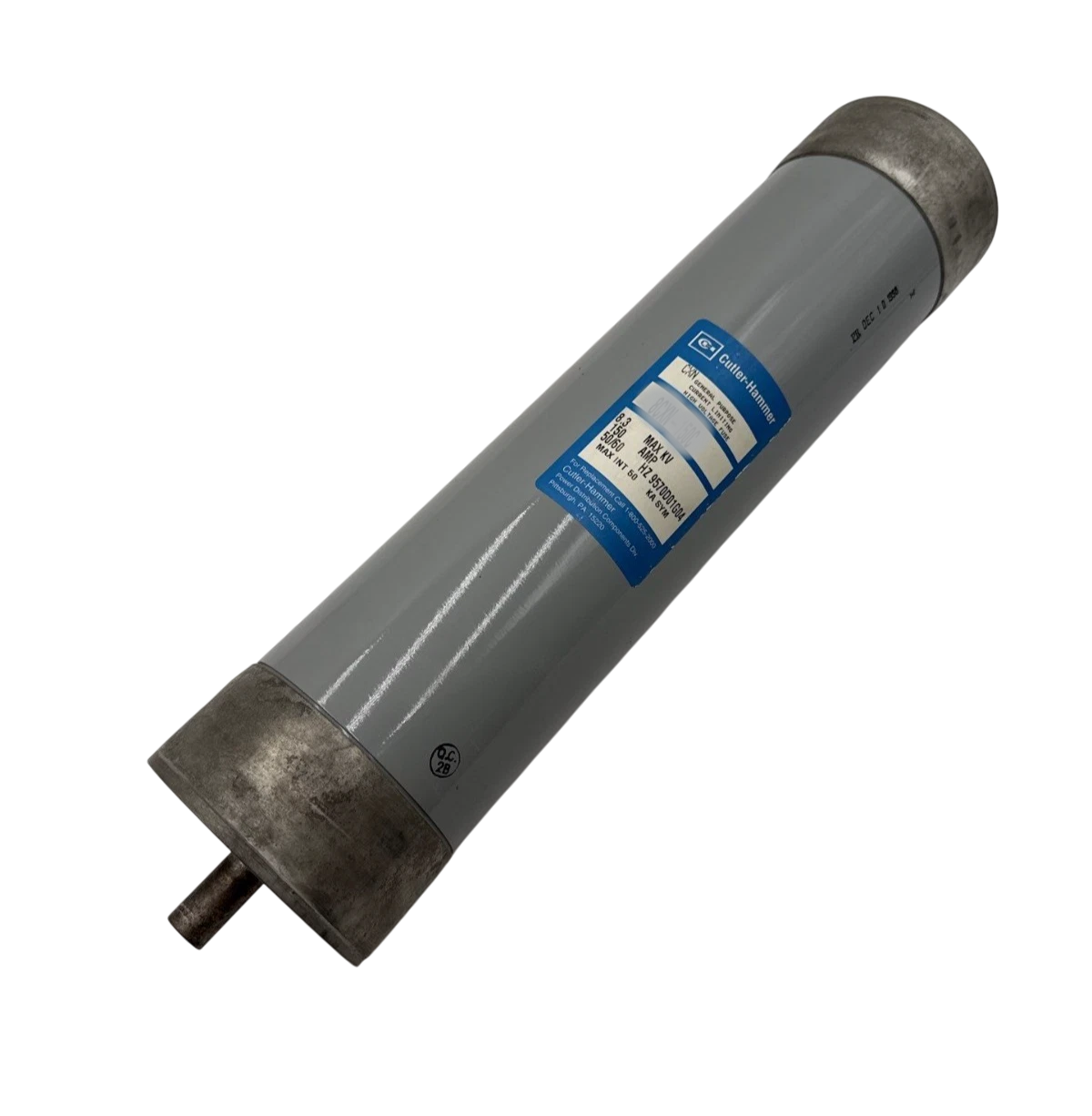

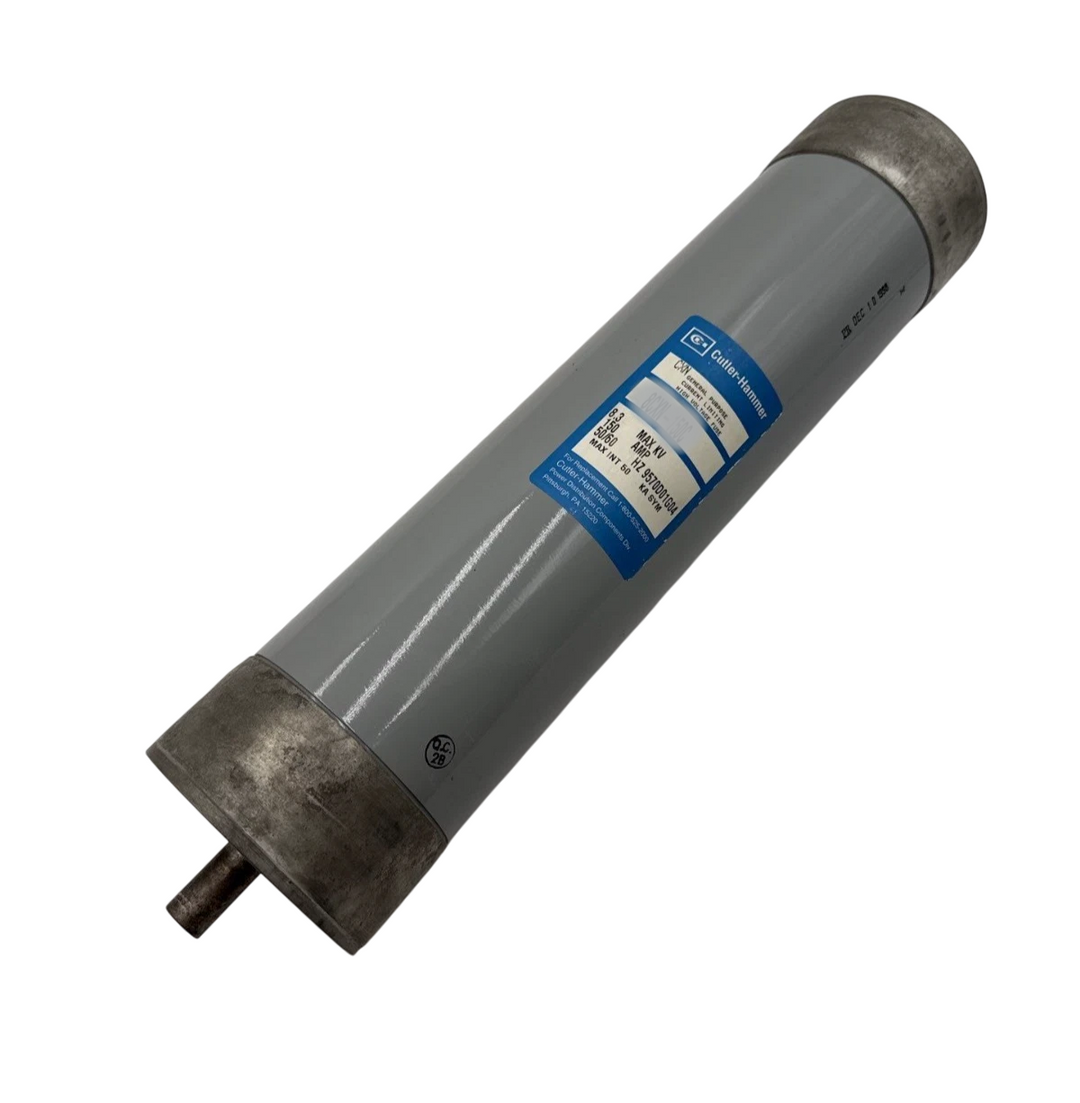

Eaton 678C295G05 - CLT Medium Voltage Fuse 4A 15.5kV (25kA AIC Rating)
Eaton 678C295G05 - CLT Medium Voltage Fuse 4A 15.5kV (25kA AIC Rating)

Eaton 678C295G05 - CLT Medium Voltage Fuse 4A 15.5kV (25kA AIC Rating)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 678C295G05 is a medium voltage current-limiting fuse designed for high-voltage circuit protection in industrial power systems. This CLT-type fuse operates at 15.5kV with a 4A current rating and features a 25kA interrupting capacity at 15.5kV for reliable fault protection. The fuse construction includes a single-barrel design with 2.25-inch diameter and threaded connections, weighing 3 lb with 9.76-inch clip center spacing for standardized mounting. It complies with industrial medium voltage protection standards for demanding electrical environments. Typical applications include transformer protection, motor circuits, and feeder protection in utility and industrial power distribution systems.

Key Features & Specifications
  • Type: CLT current-limiting fuse, single barrel
  • Voltage Rating: 15500V AC
  • Current Rating: 4A
  • Dimensions: 2.25" diameter, 9.76" clip center
  • Standards: Medium voltage industrial protection
  • Applications: Transformer protection, motor circuits, feeder protection
  • AIC rating: [email protected]
  • Connection: Threaded
  • Barrels: 1
  • Weight: 3 lb
  • Item Subcategory: Medium Voltage
