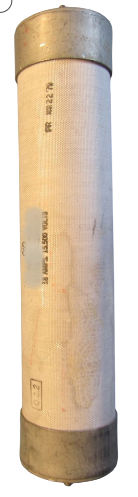

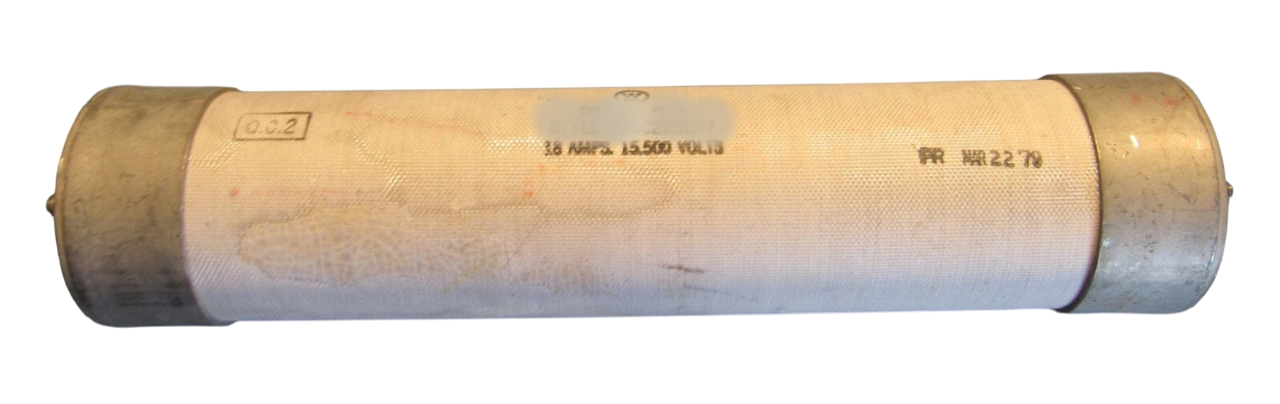

Eaton 678C295G02 - CLT Medium Voltage Fuse 15.5kV 12A (25kA AIC Rating)

Eaton 678C295G02 is a CLT medium voltage fuse designed for high-voltage circuit protection in industrial power systems. It features a 15.5kV voltage rating and 12A current rating, with a threaded connection and single-barrel construction for reliable performance. The fuse measures 2.25 inches in diameter with a 9.76-inch clip center spacing, constructed for durability in demanding environments. It meets industry standards with a 25kA interrupting capacity at 15.5kV, suitable for medium-voltage distribution applications. Typical uses include transformer protection, motor circuits, and feeder protection in utility and industrial power systems.

Key Features & Specifications

• Type: CLT medium voltage fuse with threaded connection
• Voltage Rating: 15,500V AC
• Current Rating: 12A
• Dimensions: 2.25" diameter, 9.76" clip center
• Standards: 25kA AIC at 15.5kV
• Applications: Transformer/motor protection, industrial power distribution
• Connection: Threaded
• Barrels: 1
• Weight: 3 lb
