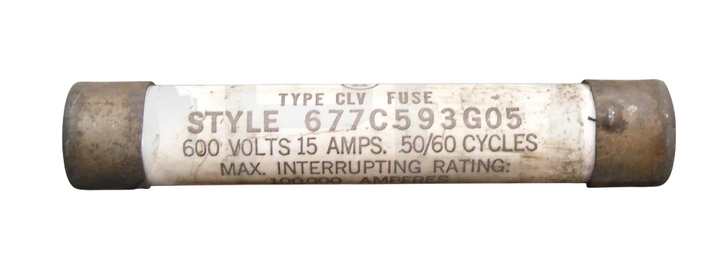

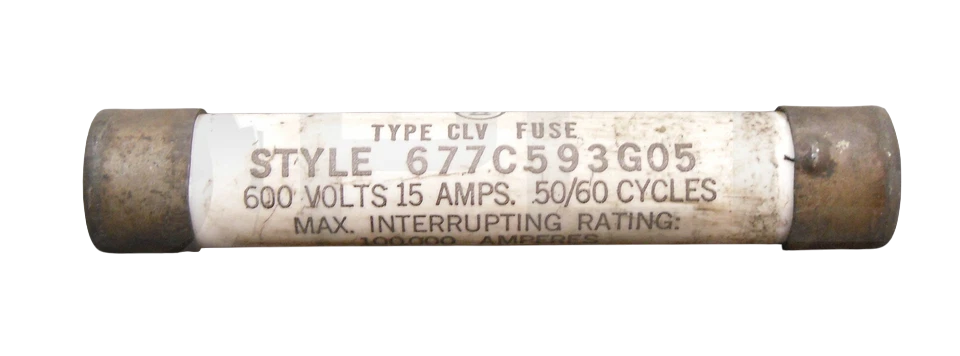

Eaton 677C593G05 - Class E Low-Voltage Fuse 15A 600V (Ferrule Connection)

Eaton 677C593G05 is a Class E low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 15A current capacity, housed in a compact ferrule-style construction with a 0.81-inch diameter barrel. The fuse meets industry standards for Class E protection with 4-inch clip center spacing, ensuring reliable performance in motor control centers, transformers, and feeder circuits.

Key Features & Specifications

• Type: Class E low-voltage fuse with ferrule connection
• Voltage Rating: 600V AC/DC
• Current Rating: 15A
• Dimensions: 0.81" diameter, single-barrel design
• Standards: Class E fuse protection
• Applications: Motor controls, transformers, industrial feeders
• Connection: Ferrule
• Clip Center: 4"
