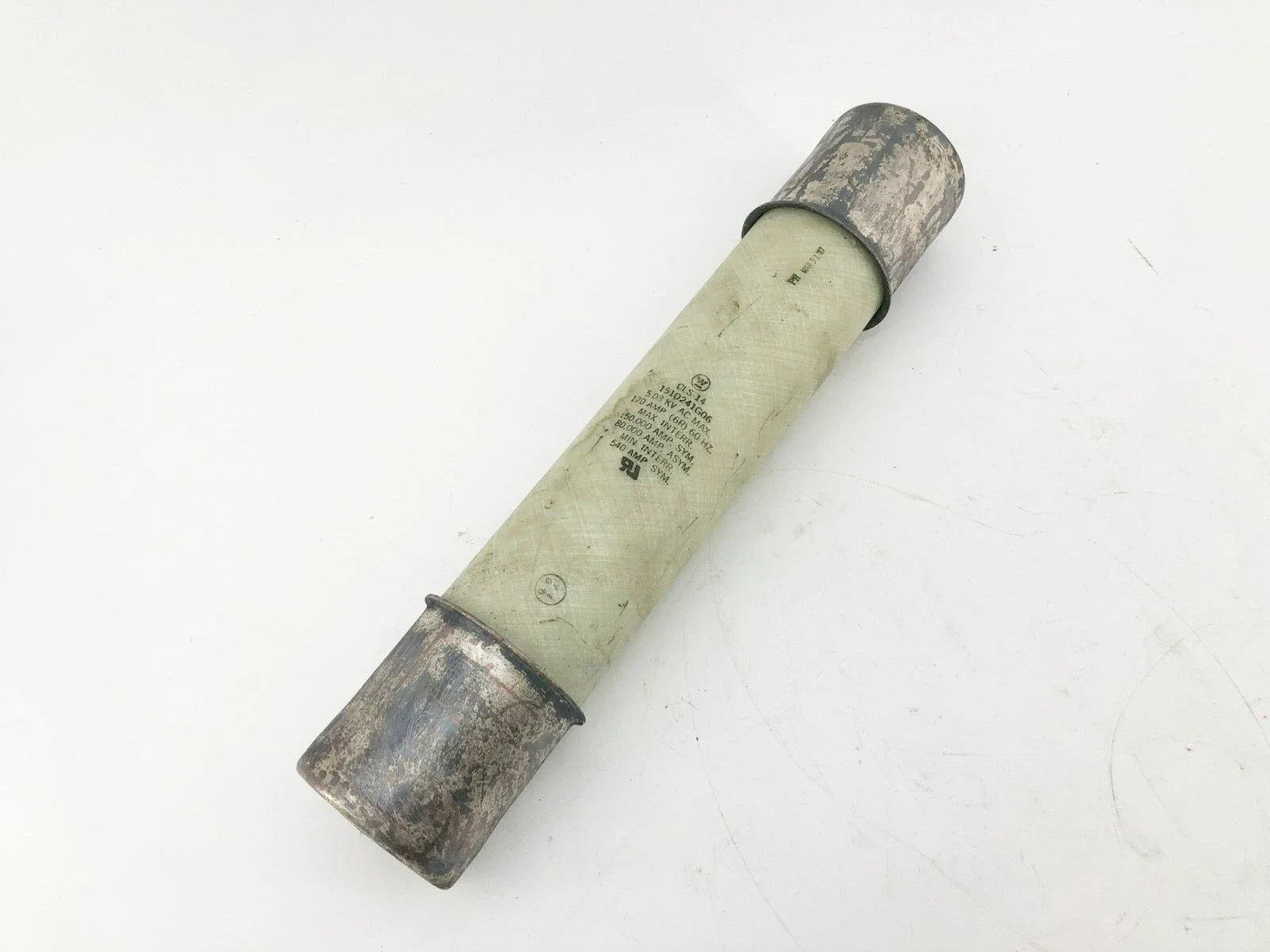

Eaton 676C546G16 - Class R Current-Limiting Fuse 100A 5500V (50kA AIC)

Eaton 676C546G16 is a medium voltage current-limiting fuse designed for industrial circuit protection applications requiring high interrupting capacity. This Class R fuse features a 100A current rating and 5500V voltage rating with a 50kA interrupting capacity at 5.5kV for reliable overcurrent protection. The single-barrel construction measures 3 inches in diameter with 14-inch clip center spacing and weighs 10 lb, providing robust physical characteristics for demanding environments. Engineered to meet industry standards for medium voltage protection, this LCLS-type fuse from the CLS family ensures compliance with electrical safety requirements. Typical applications include industrial power distribution systems, motor control centers, and medium voltage switchgear where high-performance circuit protection is essential.

Key Features & Specifications

• Type: Medium Voltage Current-Limiting Fuse, LCLS Type, Single Barrel Construction
• Voltage Rating: 5500V AC
• Current Rating: 100A
• Dimensions: 3" Diameter, 14" Clip Center Spacing
• Standards: Class R Rated
• Applications: Industrial Power Distribution, Motor Control Centers, Medium Voltage Switchgear
• AIC Rating: 50kA @ 5.5kV
• Weight: 10 lb
• Family: CLS
• Barrels: 1
• Class Rating: R
