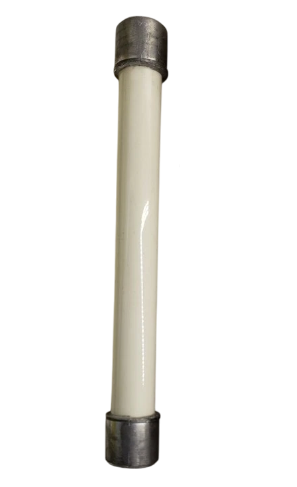

Westinghouse 676C546G02 - CLS Current-Limiting Fuse 70A ([email protected] AIC Rating)

Westinghouse 676C546G02 is a medium voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This CLS-type fuse provides reliable overcurrent protection with a voltage rating of 2540V and current rating of 70A, featuring a single-barrel construction with 3-inch diameter and 7-inch clip center spacing. The fuse meets industry standards with its Class R rating and delivers 50kA interrupting capacity at 2.54kV for effective fault current protection. Its robust design makes it suitable for medium voltage applications including motor control centers, transformers, and industrial switchgear where high interrupting capacity is required.

Key Features & Specifications

• Type: CLS current-limiting fuse, single barrel construction
• Voltage Rating: 2540V
• Current Rating: 70A
• Dimensions: 3-inch diameter, 7-inch clip center
• Standards: Class R rated
• Applications: Medium voltage industrial power distribution, motor control centers, transformers, switchgear
• AIC rating: [email protected]
• Barrels: 1
• Class Rating: R
• Clip Center: 7 inches
• Weight: 7 lb
• Family: CLS
• Item Subcategory: Medium Voltage
