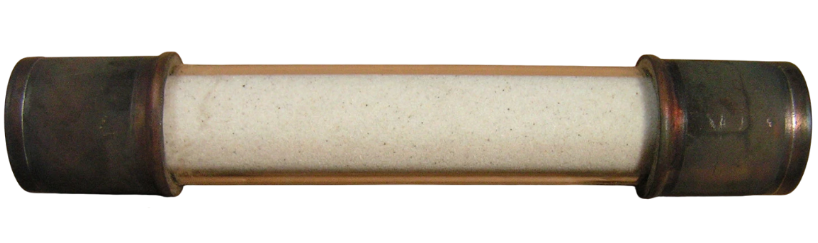

Mersen 6029160G86 - High Voltage Current-Limiting Fuse 7.2kV/200A (IEEE C37.40 Compliant)

Mersen 6029160G86 is a high-voltage current-limiting fuse designed for protecting electrical equipment from short-circuit conditions. It features a 7.2kV voltage rating and 200A current rating, with a compact cylindrical design constructed with durable silver-plated copper elements for reliable arc interruption. The fuse complies with IEEE C37.40 standards for high-voltage protection devices and is UL-recognized for industrial power distribution systems. Typical applications include transformer protection, capacitor banks, and medium-voltage switchgear in utility and industrial environments.

Key Features & Specifications

• Type: Current-limiting high-voltage fuse with silver-plated copper elements
• Voltage Rating: 7.2kV AC
• Current Rating: 200A
• Dimensions: 292mm length x 86mm diameter
• Standards: IEEE C37.40, UL recognized
• Applications: Transformer protection, capacitor banks, medium-voltage switchgear
• Weight: 3 lb
• Fuse Class: High-voltage current-limiting
• Interrupting Rating: 50kA symmetrical
• Operating Temperature: -40°C to +60°C
