Siemens 5SY61167 - MCB 16A 1P C Curve
Siemens 5SY61167 - MCB 16A 1P C Curve

Siemens 5SY61167 - MCB 16A 1P C Curve

Siemens
Price
Save $-63.74
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price

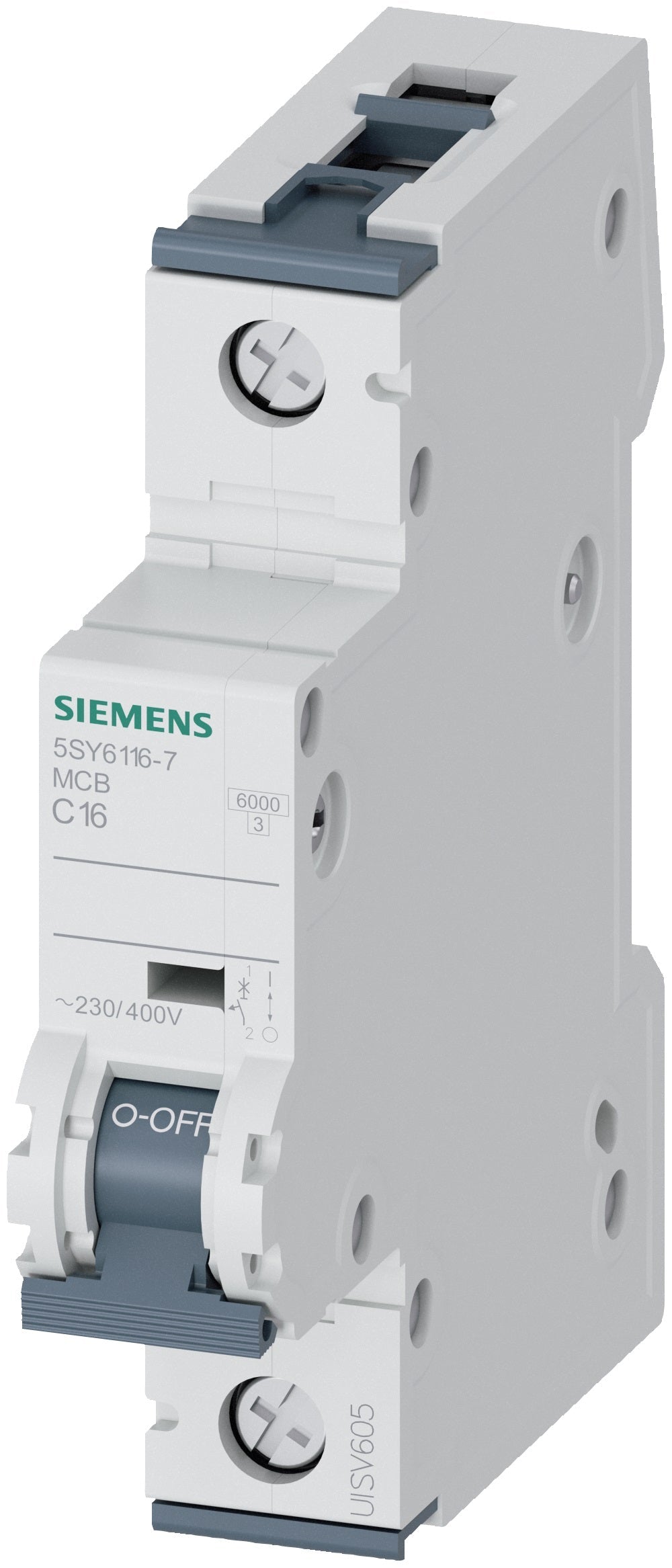

Siemens 5SY61167 is a SENTRON miniature circuit breaker providing thermal-magnetic protection for residential and industrial applications. This single-pole device is rated for 400V AC systems with a 16A current capacity and a 6kA interrupting capacity at 400V, utilizing LI (Long-Time and Instantaneous) trip functions. The unit measures 3.661 x 0.827 x 3.268 inches, weighs 0.324 lb, features a feed-thru connection, and is designed for DIN rail mounting. It complies with EN 60898 and IEC 60947-2 standards, offering an IP20 protection class and an energy limitation class of 3. Typical applications include infrastructure and industrial environments requiring reliable overcurrent protection.

Key Features & Specifications
  • Type: Molded Case
  • Family: 5SY Series
  • Country of Origin: Germany
  • Dimensions: 3.661 x 0.827 x 3.268 inch
  • Weight: 0.324 lb
  • Functions: LI - Long-Time and Instantaneous
  • Voltage Rating: 400V
  • Poles: 1
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • AIC rating: 6kA@400V
  • Phase: 1
  • Current Rating: 16A
  • Amperage: 16A
  • Voltage: 230/400V AC
  • Mounting Type: DIN Rail
  • Interrupt Rating: 6kA (EN 60898), 15kA (IEC 60947-2)
  • Series/Frame: SENTRON 5SY6
  • Trip Unit: C Curve (tripping characteristic)
  • Certifications: EN 60898, IEC 60947-2
  • Mechanical Life: 10,000 operations
  • Protection Class: IP20
  • Energy Limitation Class: 3
