Siemens 5SY61137 - MCB 13A C-Curve 1-Pole 400V
Siemens 5SY61137 - MCB 13A C-Curve 1-Pole 400V

Siemens 5SY61137 - MCB 13A C-Curve 1-Pole 400V

Siemens
Price
Save $51.28
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

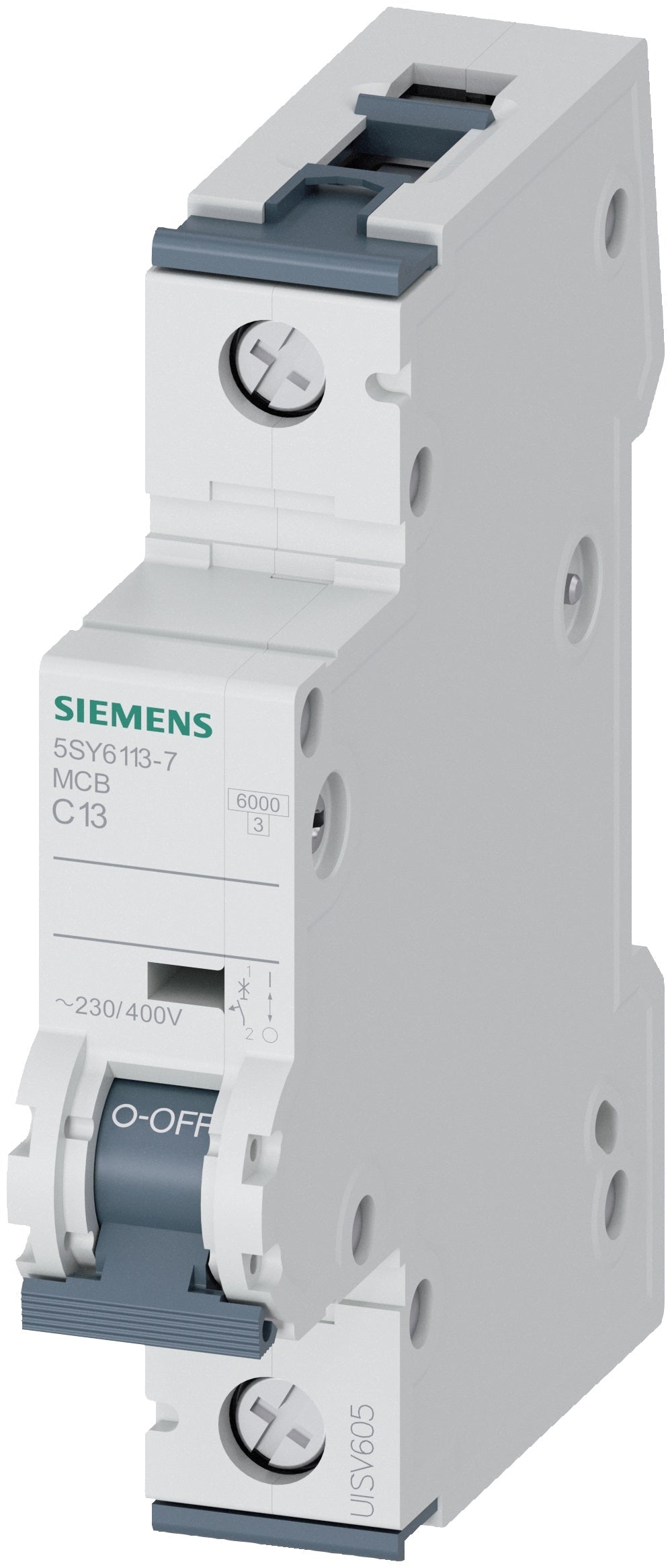

Siemens 5SY61137 is a 1-pole miniature circuit breaker from the 5SY Series, designed for overload and short-circuit protection in electrical systems. It is rated for 13 amps at 230/400V AC with a C-curve tripping characteristic and a 6kA interrupting capacity at 400V, utilizing thermal magnetic protection with LI (long-time and instantaneous) functions. The breaker measures 3.661 x 0.827 x 3.268 inches, weighs 0.34 lb, and features a feed-thru connection with a 70mm installation depth for DIN-rail mounting, constructed with touch-safe terminals and halogen-free materials. It complies with industry standards for molded case circuit breakers, offering IP20 protection class with conductors. This unit is suitable for branch circuit protection in commercial and industrial control panels, switchboards, and power distribution systems.

Key Features & Specifications
  • Type: Miniature Circuit Breaker (MCB)
  • Manufacturer: Siemens
  • Family: 5SY Series
  • Item Subcategory: Molded Case
  • Poles: 1-Pole
  • Current Rating: 13 A
  • Voltage Rating: 400V
  • Voltage: 230 / 400 V AC
  • Interrupting Capacity: 6 kA
  • AIC rating: 6kA@400V
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Trip Curve: C-Curve
  • Connection: Feed-Thru
  • Mounting Style: Snap-on / quick assembly
  • Installation Depth: 70 mm
  • Protection Class: IP20 (with conductors)
  • Dimensions: 3.661 x 0.827 x 3.268 inch
  • Weight: 0.34 lb
  • Country of Origin: Germany


Product Identification
  • UPC: 75455486481
  • GTIN: 00754554864815
