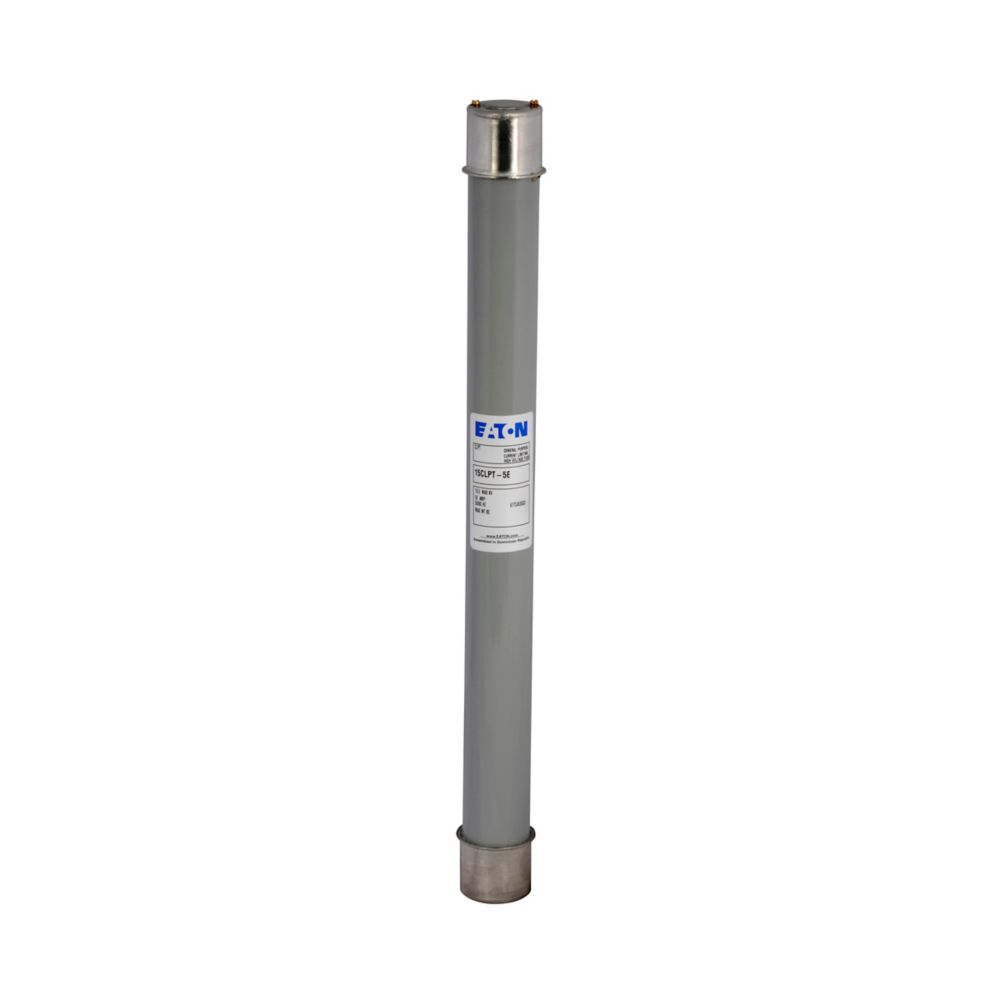

Eaton 5NCLPT-3E - Class E Medium Voltage Fuse 3A 5500V

Eaton
Price
Save $131
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 5NCLPT-3E is a medium voltage current-limiting power fuse designed for the protection of transformers, motors, and capacitor banks in industrial power systems. It features a 5500V AC voltage rating and a 3A current rating, housed within a compact, single-barrel ferrule-connected body measuring 143 mm in length with a 20.6 mm x 20.6 mm cross-section and a 0.81-inch diameter. The fuse is certified to IEEE Std. C37.41 and provides an interrupting rating of 63kA at 5.5kV, ensuring reliable protection for medium voltage circuits against short-circuit faults.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting Power Fuse, Class E, Ferrule Connection, Single Barrel
  • Voltage Rating: 5500V AC
  • Current Rating: 3A
  • Dimensions: 143 mm (Length) x 20.6 mm (Height) x 20.6 mm (Width)
  • Weight: 0.253 lb
  • Diameter: 0.81 in
  • Standards: IEEE Std. C37.41
  • AIC Rating: 63kA @ 5.5kV
  • Connection: Ferrule
  • Barrels: 1
  • Class Rating: E
  • Country of Origin: United States


Product Identification
  • UPC: 78211461011
  • GTIN: 00782114610114
