Bussmann 5NCLPT-.25E - Class E Fuse 0.25A 5500V
Bussmann 5NCLPT-.25E - Class E Fuse 0.25A 5500V
Bussmann 5NCLPT-.25E - Class E Fuse 0.25A 5500V
Bussmann 5NCLPT-.25E - Class E Fuse 0.25A 5500V

Bussmann 5NCLPT-.25E - Class E Fuse 0.25A 5500V

Bussmann
Price
Save $-65.75
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

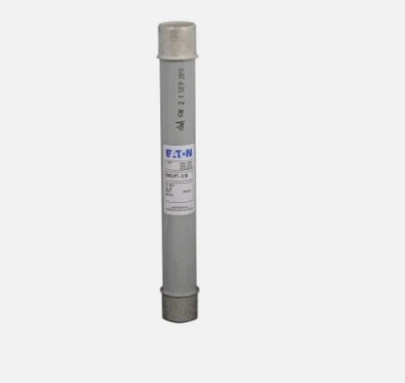

The Bussmann 5NCLPT-.25E is a Class E medium-voltage current-limiting power fuse designed for the protection of transformers, motors, and feeders in industrial power systems. It features a 5500V AC voltage rating and a precise 0.25A current rating for sensitive circuit protection. The fuse is constructed with a single-barrel, ferrule connection design, measuring 5.63 inches in length with a 0.81-inch diameter and a weight of 2 lb, ensuring compatibility with standard Class E fuse clips having a 5-inch center spacing. It is engineered and tested to comply with the IEEE Std. C37.41 standard, offering an interrupting rating of 50kA at 5.5kV for reliable fault interruption. Typical applications include safeguarding medium-voltage equipment in utility and industrial power distribution networks.

Key Features & Specifications
  • Type: NCLPT, single-barrel, ferrule connection, current-limiting power fuse
  • Voltage Rating: 5500V AC
  • Current Rating: 0.25A
  • Dimensions: 5.63 in L x 0.81 in H x 0.81 in W (0.81 in diameter)
  • Weight: 2 lb
  • Standards: Certified to IEEE Std. C37.41
  • Class Rating: Class E
  • AIC Rating: 50kA @ 5.5kV
  • Clip Center: 5 in
  • Connection: Ferrule
  • Barrels: 1


Product Identification
  • UPC: 051712632379
  • GTIN: 00786670598015
