Bussmann 5MCLS-9R-B - MCLS Class R Fuse 200A 4800V

Bussmann
Price
Save $-222.87
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

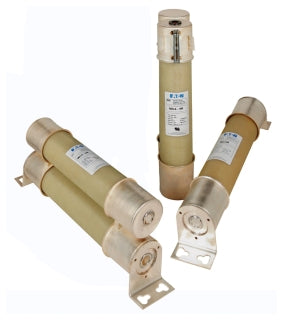

The Bussmann 5MCLS-9R-B is a medium-voltage current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power systems. It features a 200A current rating and a 4800V voltage rating, with a high interrupting capacity of 50kA at 4.8kV. The fuse is constructed as a single-barrel, bolt-in unit with a diameter of 3 inches, a length of 18.75 inches, and a weight of 10 lb, designed for a standard 19.2-inch clip center spacing. It complies with the IEEE Std. C37.41 and is rated Class R for rejection of lower-interrupting capacity fuses, ensuring enhanced safety in medium-voltage switchgear and motor starters.

Key Features & Specifications
  • Type: MCLS, Medium Voltage Current-Limiting Fuse, Single Barrel, Bolt-In Connection
  • Voltage Rating: 4800V
  • Current Rating: 200A
  • Dimensions: 18.75 in L x 4.47 in H x 3 in W
  • Standards: IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • AIC rating: 50kA @ 4.8kV
  • Class Rating: R
  • Clip Center: 19.2 in
  • Diameter: 3 in
  • Weight: 10 lb
  • Barrels: 1
  • Connection: Bolt In
  • Country of Origin: United States


Product Identification
  • UPC: 786685409344
