Bussmann 5MCLS-6R-A - MCLS Fuse 170A 4800V (R-Class)

Bussmann
Price
Save $694.63
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

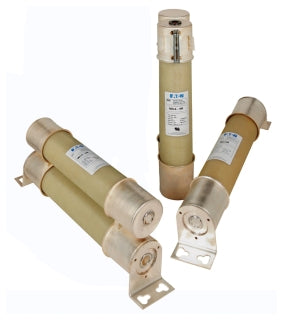

Bussmann 5MCLS-6R-A is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. It provides a 170A current rating and a 4800V voltage rating for robust circuit protection. The fuse features a single-barrel, bolt-in construction with a 3-inch diameter and an overall length of 18.75 inches, weighing 10 lb, and is engineered to an R-class rating for time-delay characteristics. It complies with the IEEE Std. C37.41 standard and offers an interrupting rating of 50kA at 4.8kV. Typical applications include motor protection, transformer protection, and feeder circuit protection in medium-voltage switchgear.

Key Features & Specifications
  • Type: MCLS (Medium Voltage Current-Limiting), single-barrel, bolt-in connection
  • Voltage Rating: 4800V
  • Current Rating: 170A
  • Dimensions: 18.75 in (Length) x 4.47 in (Height) x 3 in (Width)
  • Standards: IEEE Std. C37.41
  • Applications: Motor protection, transformer protection, feeder circuit protection
  • Class Rating: R
  • AIC rating: [email protected]
  • Clip Center: 19.2 in
  • Diameter: 3 in
  • Weight: 10 lb
  • Barrels: 1
  • Connection: Bolt In


Product Identification
  • UPC: 782634803423
  • GTIN: 00782634803423
