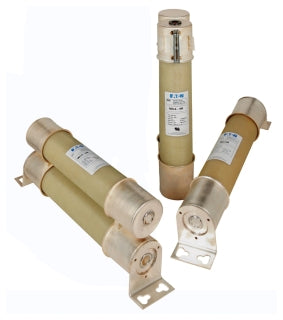

Bussmann 5MCLS-3R-A - MCLS Fuse 100A 4800V (R Class)

Bussmann
Price
Save $-231.03
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Bussmann 5MCLS-3R-A is a medium-voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. It provides a 100A current rating and a 4800V voltage rating for robust circuit protection, featuring a single-barrel, bolt-in construction with a 3-inch diameter and an overall length of 18.75 inches for secure installation. The fuse is engineered to an R class rating and complies with IEEE Std. C37.41, ensuring reliable performance and an interrupting capacity of 50kA at 4.8kV. Its typical applications include safeguarding transformers, motors, and feeders in medium-voltage switchgear and control circuits.

Key Features & Specifications
  • Type: MCLS (Medium Voltage Current-Limiting), single-barrel, bolt-in fuse
  • Voltage Rating: 4800V AC
  • Current Rating: 100A
  • Dimensions: 18.75 in L x 4.47 in H x 3 in W
  • Standards: IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in medium-voltage industrial power systems
  • AIC rating: 50kA @ 4.8kV
  • Class Rating: R
  • Connection: Bolt In
  • Diameter: 3 inches
  • Barrels: 1
  • Clip Center: 19.2 inches
  • Weight: 10 lb


Product Identification
  • UPC: 662643909401
  • GTIN: 00662643909401
