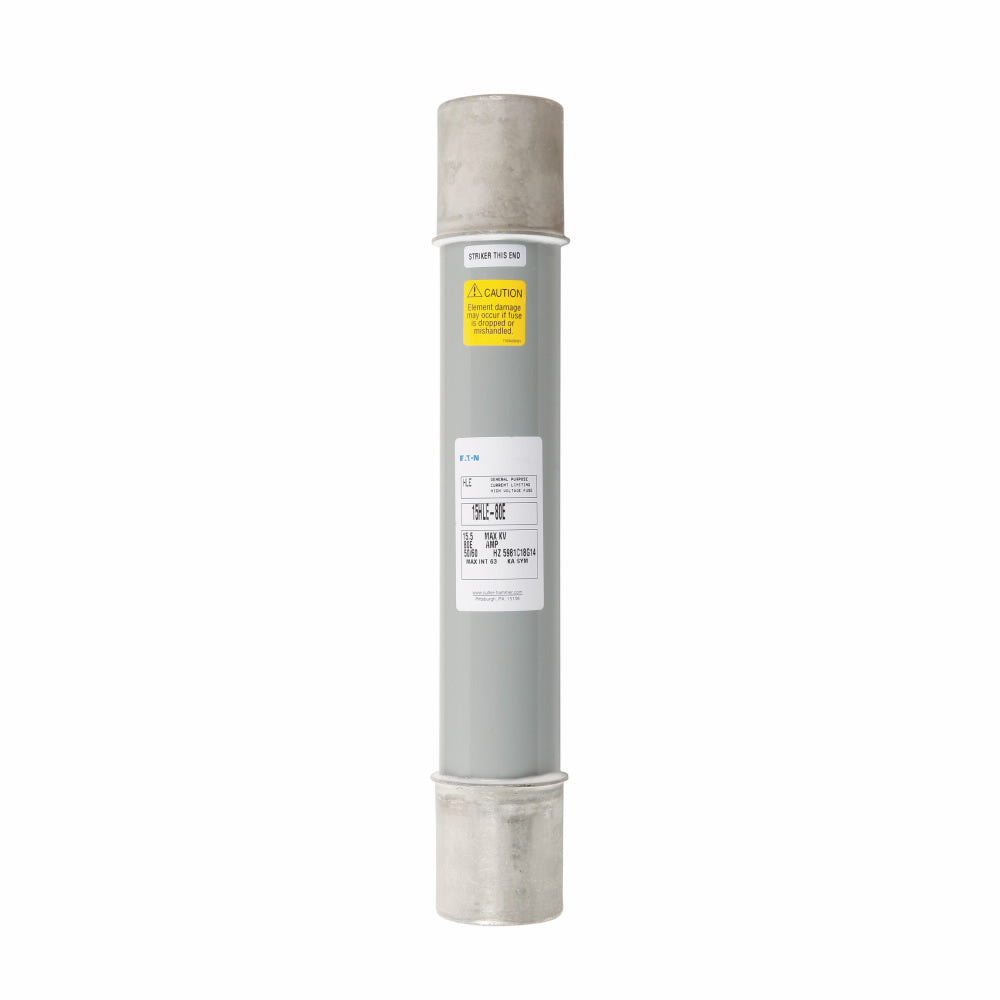

Eaton 5HLE-25E - Medium Voltage Fuse 25A 5500V (Class E)

Eaton
Price
Save $1,897.89
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 5HLE-25E is a medium voltage current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 25A current rating and a 5500V AC voltage rating, with a high interrupting capacity of 63kA at 5.5kV. The fuse is constructed as a single-barrel unit with a 3-inch diameter and a 12-inch clip center spacing, housed within a robust package measuring 15.9 x 3 x 3 inches and weighing 9 lb. It complies with industry standards for Class E fuses, ensuring reliable overcurrent protection in demanding medium-voltage applications such as switchgear, motor control centers, and capacitor banks.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, Single-Barrel HLE Fuse
  • Voltage Rating: 5500V AC
  • Current Rating: 25A
  • Dimensions: 15.9 in L x 3 in H x 3 in W
  • Standards: Class E Rating
  • Applications: Transformer, Motor, and Feeder Protection in Switchgear and MCCs
  • AIC Rating: 63kA @ 5.5kV
  • Diameter: 3 inches
  • Barrels: 1
  • Clip Center: 12 inches
  • Weight: 9 lb


Product Identification
  • UPC: 051712529648
  • GTIN: 00051712529648
