Eaton 5HLE-250E - Medium Voltage Fuse 250A 5500V (63kA AIC)

Eaton
Price
Save $1,913.60
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

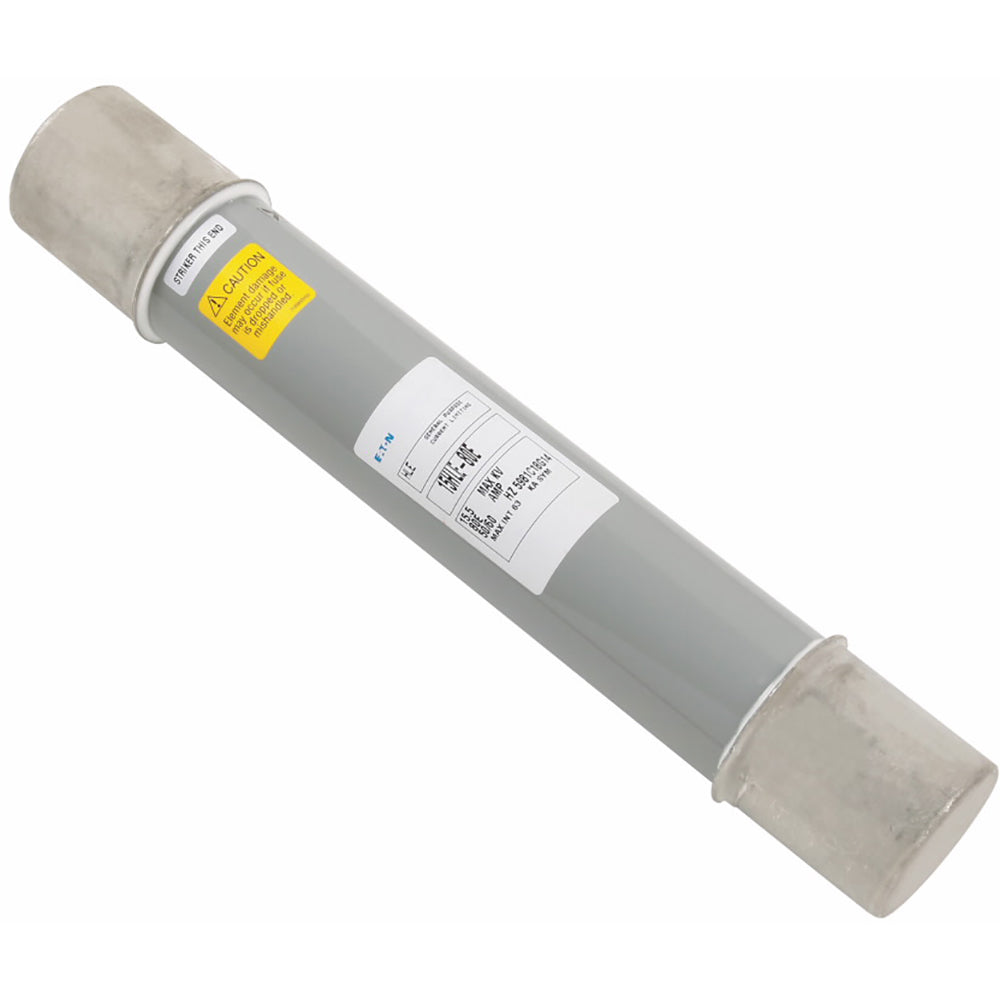

Eaton 5HLE-250E is a medium voltage current-limiting power fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 250A current rating and a 5500V voltage rating, with a high interrupting capacity of 63kA at 5.5kV. The fuse is constructed as a single-barrel, Class E device with a 1.6-inch diameter and a 12-inch clip center spacing, housed within a robust assembly measuring 15.9 in x 3 in x 3 in and weighing 9 lb. It is engineered to comply with IEEE Std. C37.41 and VDE standards, ensuring reliable performance in demanding medium-voltage applications such as switchgear and motor control centers.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, Power Fuse, Class E, Single Barrel
  • Voltage Rating: 5500V
  • Current Rating: 250A
  • Dimensions: 15.9 in (Length) x 3 in (Height) x 3 in (Width)
  • Standards: IEEE Std. C37.41, VDE
  • Applications: Transformer, Motor, and Feeder Protection in Industrial Power Systems
  • AIC rating: 63kA @ 5.5kV
  • Class Rating: E
  • Barrels: 1
  • Diameter: 1.6 in
  • Clip Center: 12 in
  • Weight: 9 lb


Product Identification
  • UPC: 051712529631
  • GTIN: 00786670600206
