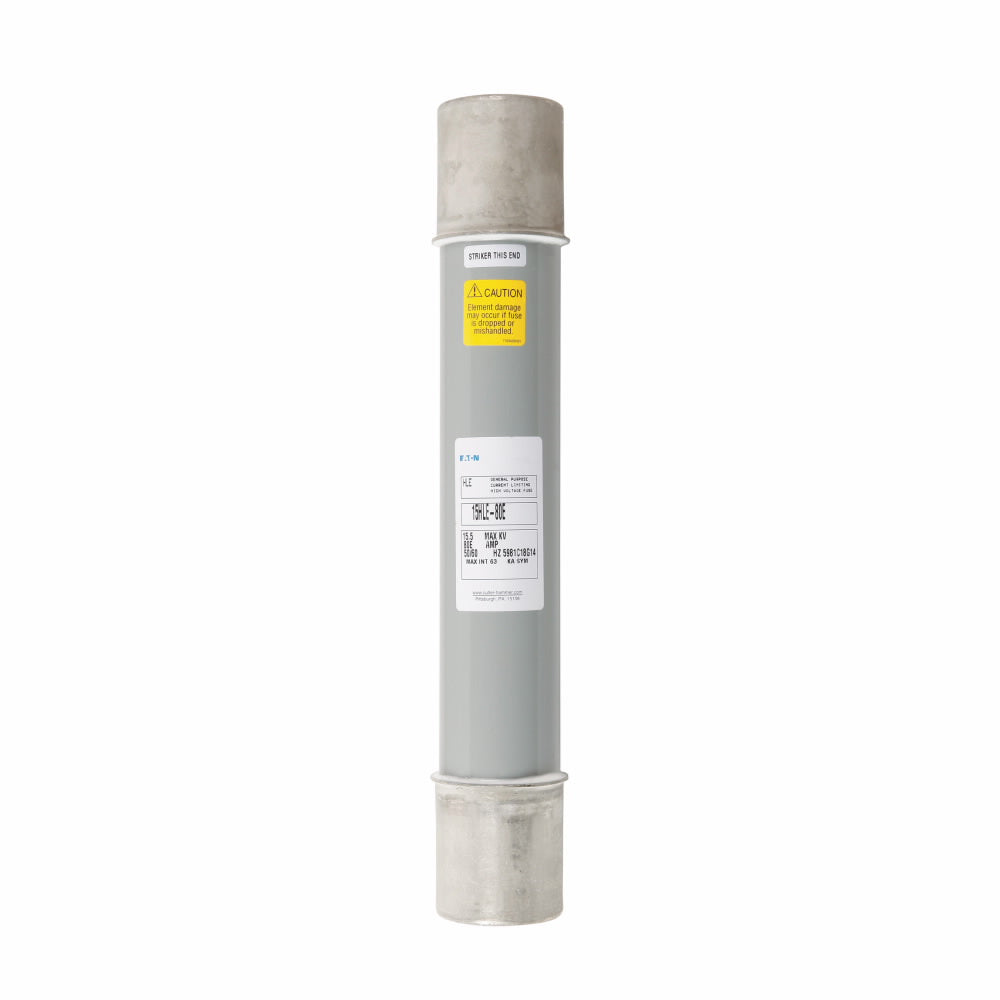

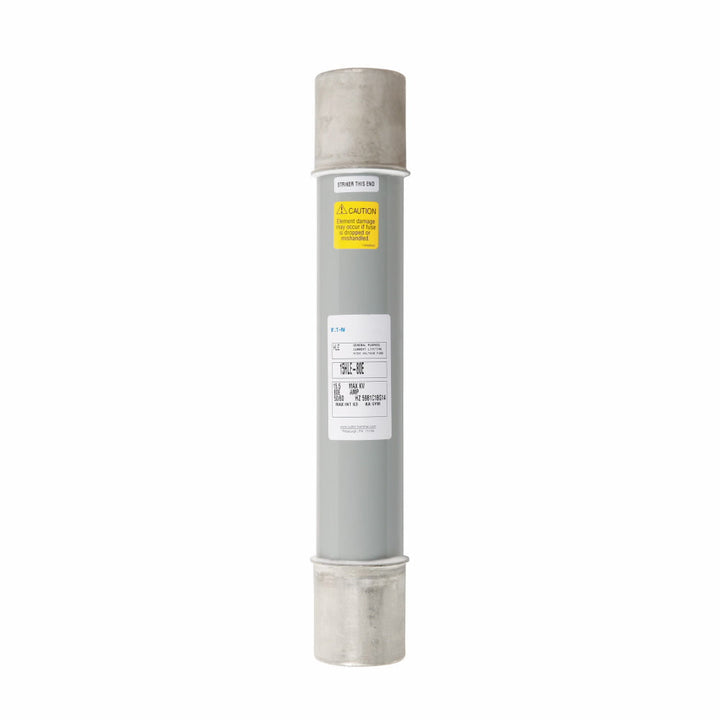

Eaton 5HLE-20E - Medium Voltage Fuse 20A (5500V, 63kA AIC)

Eaton 5HLE-20E is a medium voltage fuse designed for high-current circuit protection in industrial power systems. Rated for 5500V AC with a 20A current capacity, it features a single-barrel Class E construction with a 0.81-inch diameter and 12-inch clip center spacing. The fuse meets stringent industry standards with a 63kA interrupting capacity at 5.5kV, housed in a compact package weighing 10 lb. Its robust design ensures reliable protection for transformers, motors, and switchgear in demanding industrial environments.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, Class E
• Voltage Rating: 5500V AC
• Current Rating: 20A
• Dimensions: 0.001in (L) x 0.001in (H) x 0.001in (W)
• Diameter: 0.81 inches
• Weight: 10 lb
• AIC Rating: 63kA @ 5.5kV
• Barrels: 1
• Clip Center: 12 inches
• Standards: Meets industrial protection requirements
• Applications: Transformers, motors, switchgear protection

Product Identification

• UPC: 05171252962
• GTIN: 00051712529624
