Eaton 5HLE-125E - Medium Voltage Fuse 125A 5500V (Class R)

Eaton
Price
Save $-614.42
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

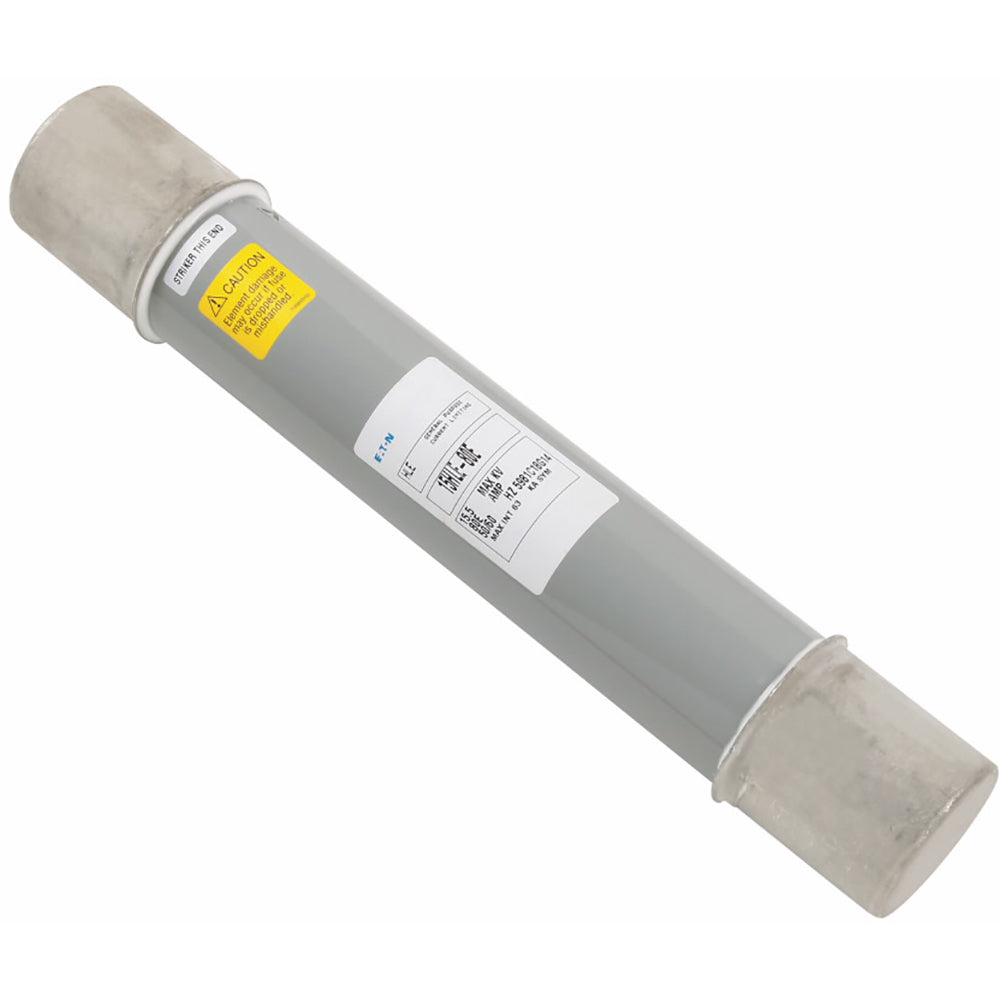

Eaton 5HLE-125E is a medium voltage current-limiting fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 125A current rating and a 5500V voltage rating, with a high interrupting capacity of 63kA at 5.5kV. The fuse is constructed as a single-barrel unit with a 3-inch diameter and an overall length of 15.9 inches, weighing 9 lb, and is engineered for use with a 12-inch clip center mounting. It complies with the IEEE Std. C37.41 standard and carries a Class R rating, indicating its rejection feature to prevent the installation of a fuse with a lower interrupting rating, making it suitable for demanding applications in utility and industrial switchgear.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, Class R, Single Barrel
  • Voltage Rating: 5500V AC
  • Current Rating: 125A
  • Dimensions: 15.9 in L x 3 in H x 3 in W
  • Standards: IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • AIC rating: 63kA @ 5.5kV
  • Class Rating: R
  • Diameter: 3 in
  • Barrels: 1
  • Clip Center: 12 in
  • Weight: 9 lb


Product Identification
  • UPC: 786670600121
  • GTIN: 00786670600121
