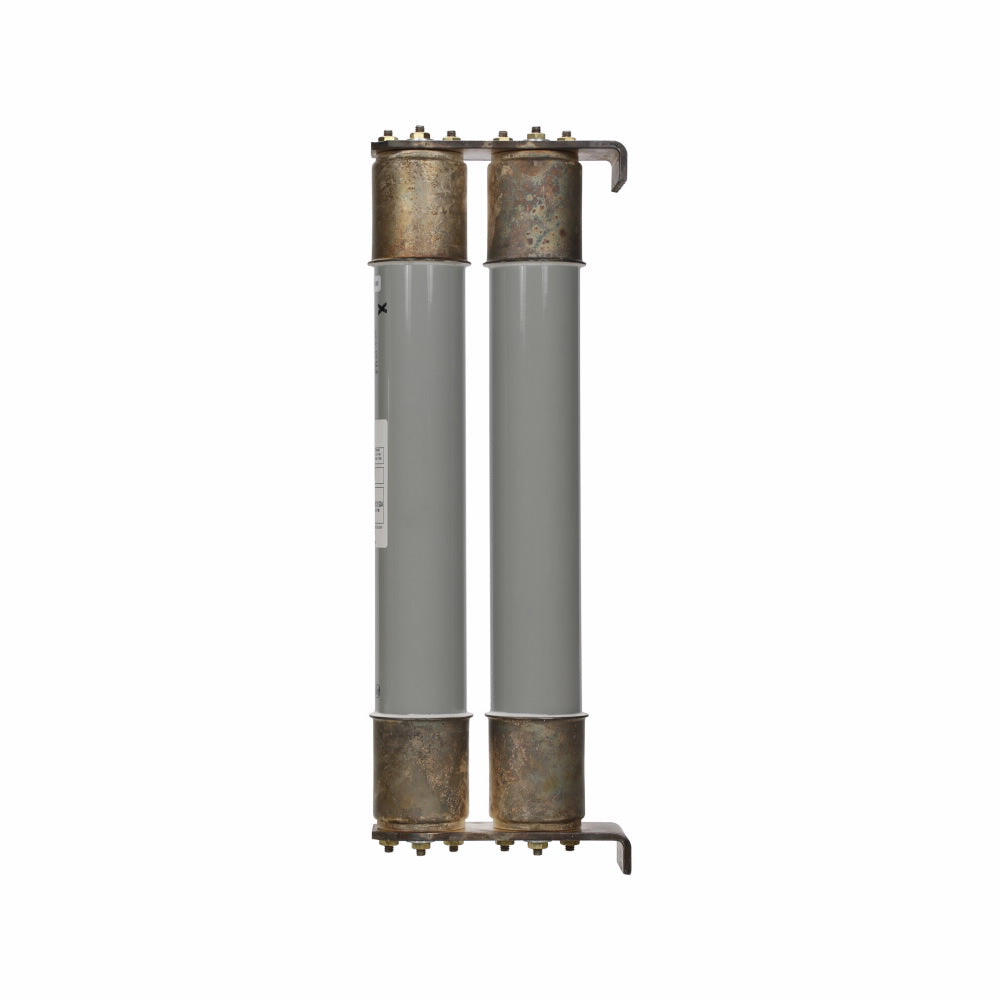

Eaton 5HCL-250E - Class E Fuse 250A 5.5kV (63kA AIC)

Eaton
Price
Save $2,210.91
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 5HCL-250E is a medium voltage current-limiting power fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 250A continuous current rating and a 5.5kV voltage rating, with a high interrupting capacity of 63kA to safely clear fault currents. The fuse is constructed with a robust three-barrel design, measures 22.5 inches in length with a 3-inch diameter, and weighs 10 lb, ensuring durable performance in demanding environments. It is engineered and tested in compliance with the IEEE Std. C37.41 standard, making it suitable for use in utility and industrial switchgear, substations, and motor control centers.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Power Fuse, Class E, 3-barrel construction
  • Voltage Rating: 5500V AC
  • Current Rating: 250A
  • Dimensions: 22.5 in (L) x 3.3 in (H) x 3 in (W)
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, feeders, and motors in industrial power systems
  • AIC rating: 63kA @ 5.5kV
  • Diameter: 3 in
  • Class Rating: E
  • Barrels: 3
  • Weight: 10 lb


Product Identification
  • UPC: 782114892725
  • GTIN: 00782114892725
