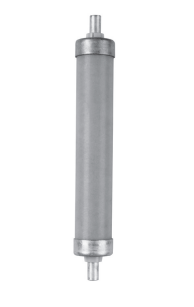

Eaton 5CX-60C - Medium Voltage Current-Limiting Fuse 60A ([email protected] AIC Rating)

Eaton 5CX-60C is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power systems. It features a 60A current rating and a 5500V voltage rating, providing reliable circuit interruption capabilities. The fuse is constructed as a single-barrel unit with a 2-inch diameter and utilizes an NX-style connection interface, built to withstand demanding industrial environments. This Class C rated fuse complies with industry standards for medium voltage protection and offers an interrupting rating of 50kA at 5.5kV. Typical applications include motor protection, transformer protection, and feeder circuit protection in industrial facilities and utility substations.

Key Features & Specifications

• Type: Medium voltage current-limiting fuse, single barrel construction
• Voltage Rating: 5500V AC
• Current Rating: 60A
• Dimensions: 2-inch diameter
• Standards: Class C rated
• Applications: Industrial power systems, motor protection, transformer protection
• AIC rating: [email protected]
• Connection: NX
• Barrels: 1
• Weight: 3 lb
• Family: CX
• Type: CX
• Item Subcategory: Medium Voltage
