Eaton 5CX-10C - Class C Fuse 10A 5500V (50kA AIC)
Eaton 5CX-10C - Class C Fuse 10A 5500V (50kA AIC)
Eaton 5CX-10C - Class C Fuse 10A 5500V (50kA AIC)
Eaton 5CX-10C - Class C Fuse 10A 5500V (50kA AIC)

Eaton 5CX-10C - Class C Fuse 10A 5500V (50kA AIC)

Eaton
Price
Save $1,728.36
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

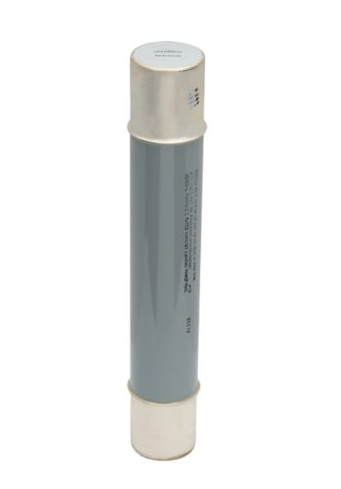

Eaton 5CX-10C is a medium-voltage current-limiting fuse designed for overcurrent protection in industrial power distribution systems. It features a 10A current rating and a 5500V voltage rating, with a high interrupting capacity of 50kA at 5.5kV. The fuse is constructed as a single-barrel unit with an NX connection style, measuring 10 in x 2 in x 2 in and weighing 3 lb with a 1.13-inch diameter. As a Class C fuse, it complies with industry standards for medium-voltage applications, making it suitable for protecting transformers, motors, and feeder circuits.

Key Features & Specifications
  • Type: Medium-voltage, current-limiting, single-barrel fuse
  • Voltage Rating: 5500V
  • Current Rating: 10A
  • Dimensions: 10 in (L) x 2 in (H) x 2 in (W)
  • Standards: Class C rating
  • Applications: Protection for transformers, motors, and feeder circuits
  • AIC Rating: 50kA at 5.5kV
  • Connection: NX style
  • Barrels: 1
  • Diameter: 1.13 in
  • Weight: 3 lb
  • Family: CX


Product Identification
  • UPC: 078667015040
  • GTIN: 00786670150404
