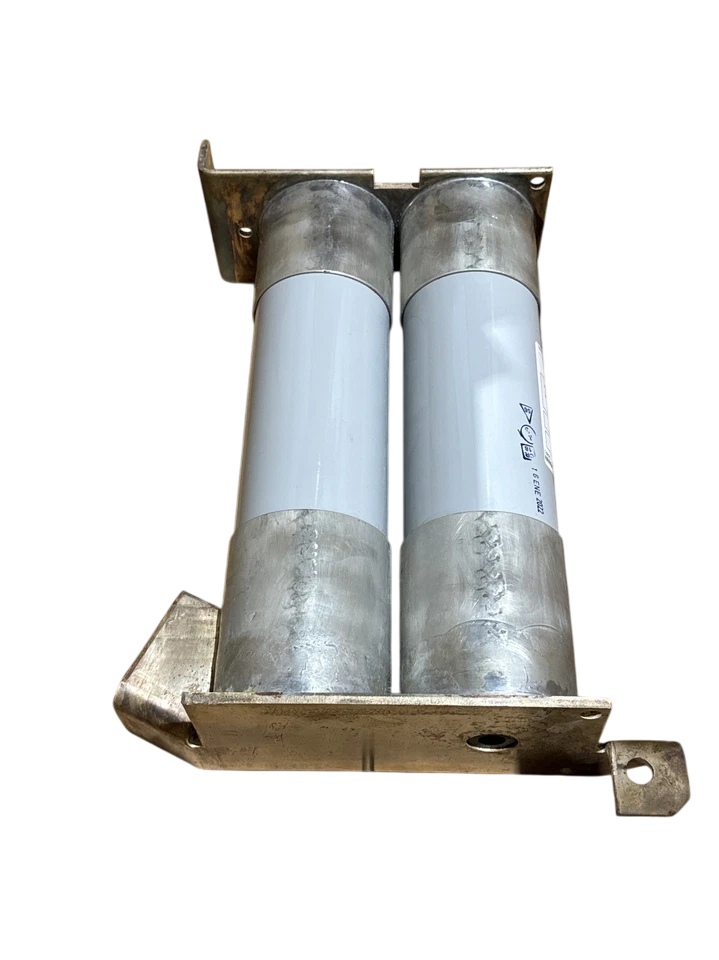

Eaton 5CLS75-36R is a medium-voltage current-limiting power fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 36A current rating and a 5080V voltage rating, with a high interrupting capacity of 50kA at 5.5kV. The fuse is constructed with a two-barrel design, a 4-inch diameter, and a bolt-in connection, featuring a clip center spacing of 18.38 inches within an overall dimension of 28.87 x 10.2 x 4.5 inches (L x H x W) and a weight of 30 lb. It complies with the IEEE Std. C37.41 standard and is classified as an 'R' rating fuse, making it suitable for applications requiring backup protection against high fault currents in medium-voltage switchgear and motor starters.

Key Features & Specifications
  • Type: CLS75, Medium Voltage Current-Limiting Power Fuse, 2-Barrel Design
  • Voltage Rating: 5080V
  • Current Rating: 36A
  • Dimensions: 28.87 in L x 10.2 in H x 4.5 in W
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • Class Rating: R
  • AIC rating: 50kA @ 5.5kV
  • Connection: Bolt In
  • Clip Center: 18.38 in
  • Diameter: 4 in
  • Weight: 30 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786670221890
  • GTIN: 00786670221890
