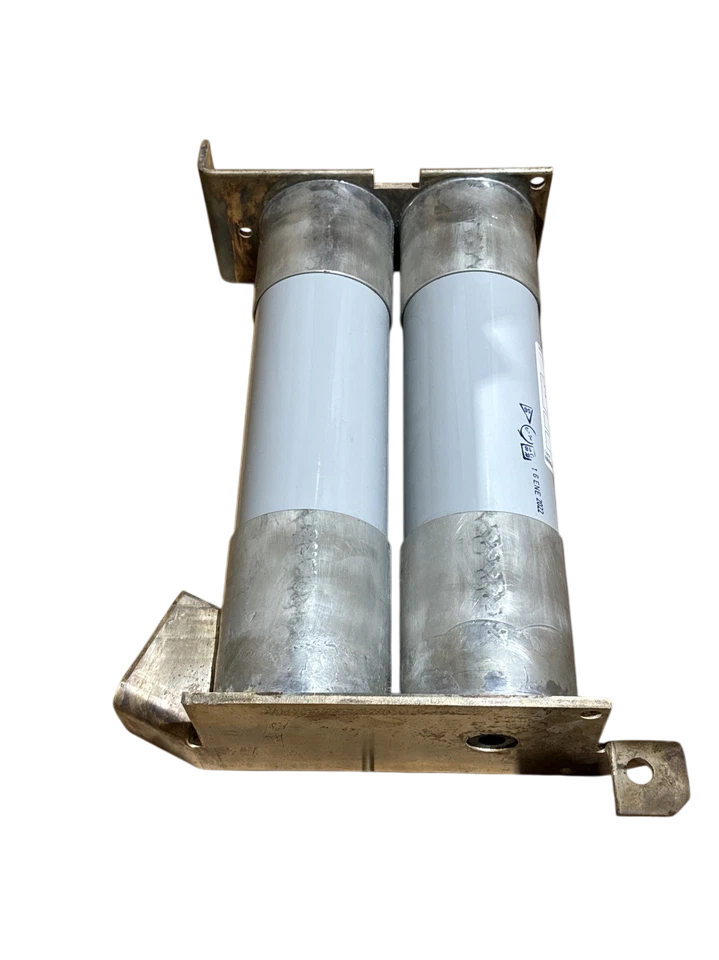

Eaton 5CLS70-750E - Medium Voltage Fuse 750A 5080V (Class E)
Eaton 5CLS70-750E - Medium Voltage Fuse 750A 5080V (Class E)

Eaton 5CLS70-750E - Medium Voltage Fuse 750A 5080V (Class E)

Eaton
Price
Save $-190.51
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 5CLS70-750E is a medium voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. It provides a 750A current rating and a 5080V voltage rating for robust overcurrent protection, constructed with a dual-barrel design housed in a 19.5 in x 12 in x 4.5 in enclosure with a 4-inch diameter and a bolt-in connection for secure installation. The fuse is certified to IEEE Std. C37.41 and features a Class E rating with an interrupting capacity of 50kA at 5.5kV, ensuring reliable performance in demanding applications such as transformer protection, feeder circuits, and motor control centers.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting Fuse, CLS70 dual-barrel design
  • Voltage Rating: 5080V
  • Current Rating: 750A
  • Dimensions: 19.5 in (Length/Depth) x 12 in (Height) x 4.5 in (Width)
  • Weight: 28 lb
  • Diameter: 4 in
  • Class Rating: E
  • Connection: Bolt In
  • Barrels: 2
  • Certification: IEEE Std. C37.41
  • AIC Rating: 50kA @ 5.5kV
  • Clip Center: 18.38 in
  • Family: CLS
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 078667000064
  • GTIN: 00786670000648
