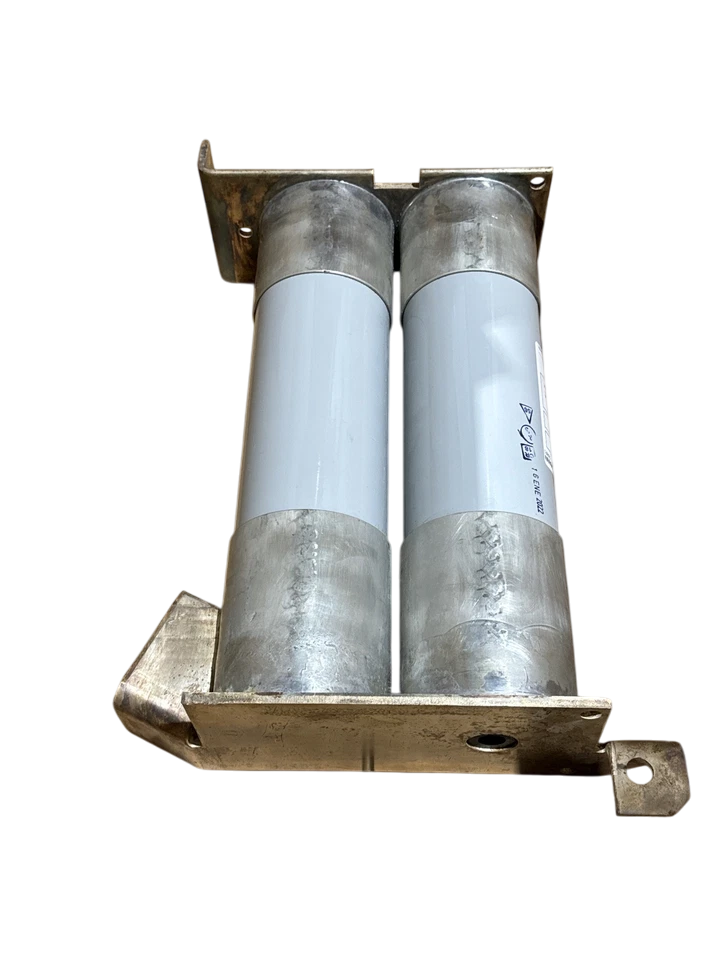

Eaton 5CLS70-600E is a medium voltage current-limiting fuse designed for high-capacity circuit protection in industrial power distribution systems. It provides a 600A current rating and a 5080V voltage rating for robust electrical protection, featuring a two-barrel construction with a 4-inch diameter and bolt-in connection terminals for secure installation. The fuse is engineered to an E class rating with a 50kA interrupting capacity at 5.5kV and complies with the IEEE Std. C37.41 standard for medium-voltage fuses. Its physical dimensions are 19.5 in x 12 in x 4.5 in with a clip center of 18.38 inches and a weight of 28 lb, making it suitable for applications in switchgear, motor control centers, and transformer protection.

Key Features & Specifications
  • Type: CLS70 medium voltage current-limiting fuse with two-barrel construction
  • Voltage Rating: 5080V
  • Current Rating: 600A
  • Dimensions: 19.5 in x 12 in x 4.5 in (Length/Depth x Height x Width)
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Industrial power distribution, switchgear, motor control centers, transformer protection
  • Class Rating: E
  • AIC rating: 50kA at 5.5kV
  • Connection: Bolt In
  • Barrels: 2
  • Diameter: 4 inches
  • Clip Center: 18.38 inches
  • Weight: 28 lb


Product Identification
  • UPC: 786670500025
  • GTIN: 00786670500025
