Bussmann 5CLS70-36R - CLS Medium Voltage Fuse 650A 5080V

Bussmann
Price
Save $5,846.23
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

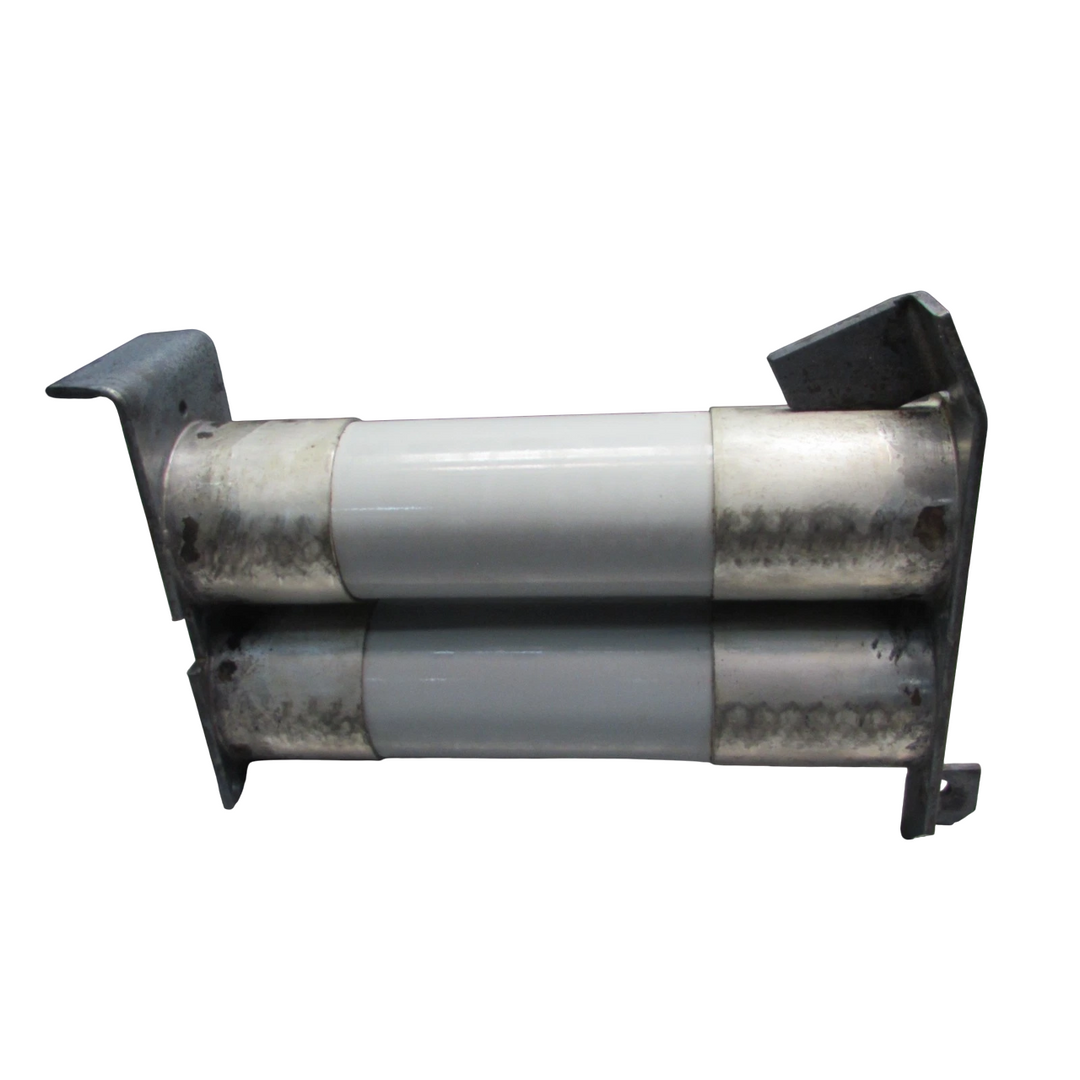

The Bussmann 5CLS70-36R is a medium voltage current-limiting fuse designed for high-interrupting capacity protection in industrial power distribution systems. It features a 650A current rating and a 5080V voltage rating, providing robust overcurrent protection. The fuse is constructed with a dual-barrel design, a 4-inch diameter, and measures 19.25 in x 12.5 in x 4.5 in (LxHxW) with a weight of 30 lb. It complies with the IEEE Std. C37.41 standard and is rated for an interrupting capacity of 50kA at 5.08V. Typical applications include protecting transformers, capacitors, and feeders in utility and industrial medium-voltage switchgear.

Key Features & Specifications
  • Type: Medium Voltage Current-Limiting (CLS) Fuse, dual-barrel construction
  • Voltage Rating: 5080V
  • Current Rating: 650A
  • Dimensions: 19.25 in x 12.5 in x 4.5 in (Length/Depth x Height x Width)
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, capacitors, and feeders in industrial power systems
  • Class Rating: R
  • AIC rating: [email protected]
  • Diameter: 4 inches
  • Barrels: 2
  • Weight: 30 lb


Product Identification
  • UPC: 051712529150
  • GTIN: 00786670150213
