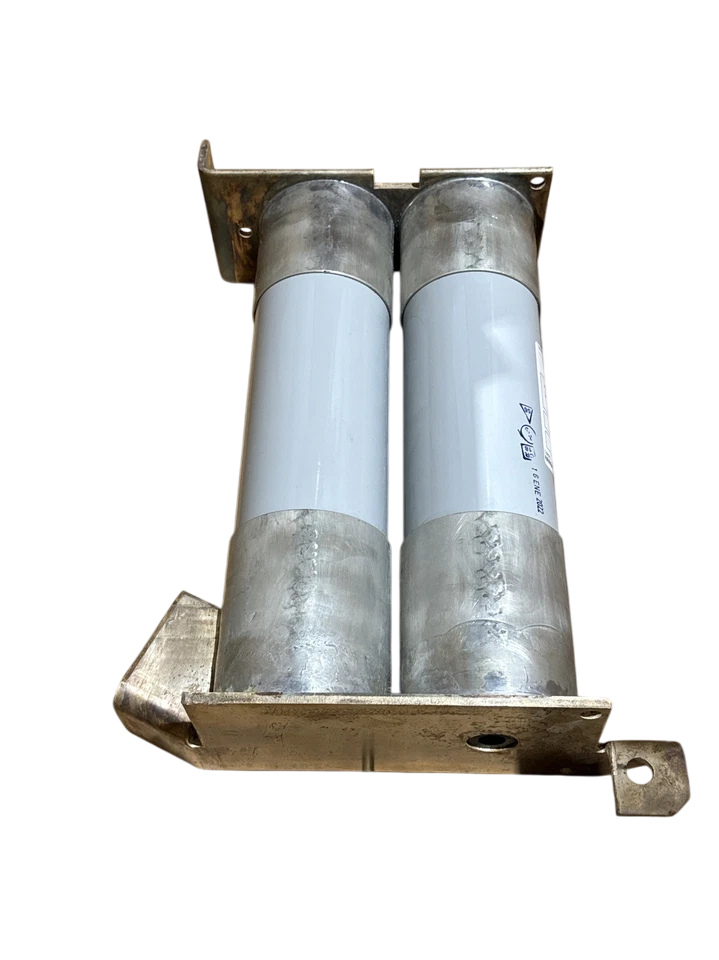

Eaton 5CLS70-24R - CLS Medium Voltage Fuse 450A @ 5080V
Eaton 5CLS70-24R - CLS Medium Voltage Fuse 450A @ 5080V

Eaton 5CLS70-24R - CLS Medium Voltage Fuse 450A @ 5080V

Eaton
Price
Save $-2,264
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 5CLS70-24R is a medium voltage current-limiting power fuse designed for the protection of transformers, motors, and feeders in industrial power distribution systems. It features a 5080V AC voltage rating and a 450A continuous current rating, housed within a robust two-barrel construction with a 4-inch diameter and an overall length of 19.25 inches. The fuse is engineered to IEEE Std. C37.41 and provides a 50kA symmetrical interrupting rating at 5.08kV, ensuring reliable protection for medium-voltage circuits against short-circuit faults.

Key Features & Specifications
  • Type: CLS, Medium Voltage Current-Limiting Power Fuse, 2-Barrel Construction
  • Voltage Rating: 5080V AC
  • Current Rating: 450A
  • Dimensions: 19.25 in L x 12.5 in H x 4.5 in W
  • Weight: 30 lb
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power systems
  • Class Rating: R
  • AIC rating: 50kA @ 5.08kV
  • Diameter: 4 in
  • Barrels: 2
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786670150220
  • GTIN: 00786670150220
