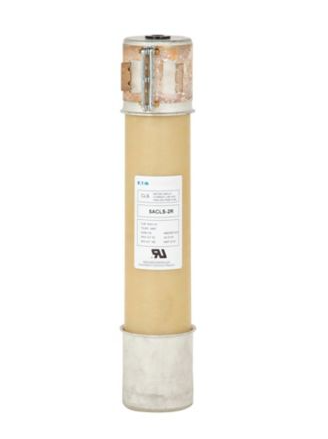

Eaton 5CLS70-12R is a medium voltage current-limiting fuse designed for high-interrupting capacity protection in industrial power distribution systems. It provides a 230A current rating and a 5080V voltage rating for robust circuit protection. The fuse features a dual-barrel CLS construction with a 4-inch diameter and an overall size of 19.25 x 12.5 x 4.5 inches, weighing 30 lb, and is engineered to meet IEEE Std. C37.41 standards. This Class R fuse is typically applied in motor control centers, transformers, and feeder circuits where a 50kA interrupting rating at 5.08kV is required for reliable fault isolation.

Key Features & Specifications
  • Type: Medium Voltage, Current-Limiting, Dual-Barrel CLS Fuse
  • Voltage Rating: 5080V
  • Current Rating: 230A
  • Dimensions: 19.25 in L x 12.5 in H x 4.5 in W
  • Standards: IEEE Std. C37.41
  • Applications: Industrial Power Distribution, Motor Control Centers, Transformer Protection
  • Class Rating: R
  • AIC rating: 50kA @ 5.08kV
  • Barrels: 2
  • Diameter: 4 in
  • Weight: 30 lb


Product Identification
  • UPC: 786670150237
  • GTIN: 00786670150237
