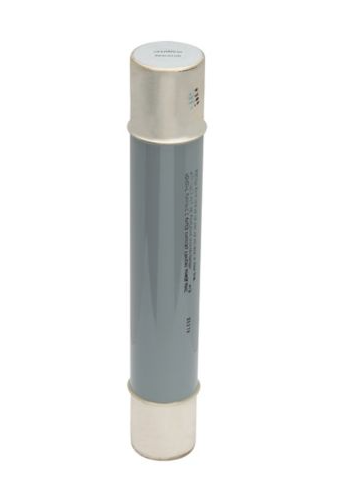

Eaton 5CLPT-1E - Medium Voltage Current-Limiting Power Fuse 1A (80kA@5.5kV AIC Rating)
Eaton 5CLPT-1E - Medium Voltage Current-Limiting Power Fuse 1A (80kA@5.5kV AIC Rating)

Eaton 5CLPT-1E - Medium Voltage Current-Limiting Power Fuse 1A ([email protected] AIC Rating)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 5CLPT-1E is a medium voltage current-limiting power fuse designed for protecting electrical distribution systems from overcurrent and short-circuit faults. It features a 5500V voltage rating and a 1A current rating, providing precise protection for sensitive equipment. The fuse is constructed as a single-barrel unit with a 1.6-inch diameter and 8.1-inch clip center spacing, weighing 2 lb for robust industrial applications. This Class E rated fuse meets industry standards for medium voltage protection with an 80kA interrupting rating at 5.5kV. Typical applications include motor control centers, transformers, and feeder circuits in industrial power distribution systems.

Key Features & Specifications
  • Type: Medium voltage current-limiting power fuse, single barrel construction
  • Voltage Rating: 5500V AC
  • Current Rating: 1A
  • Dimensions: 1.6" diameter, 8.1" clip center spacing
  • Standards: Class E rated
  • Applications: Industrial power distribution, motor control centers, transformer protection
  • AIC rating: [email protected]
  • Class Rating: E
  • Barrels: 1
  • Weight: 2 lb
  • Item Subcategory: Medium Voltage
  • Family: CLPT
