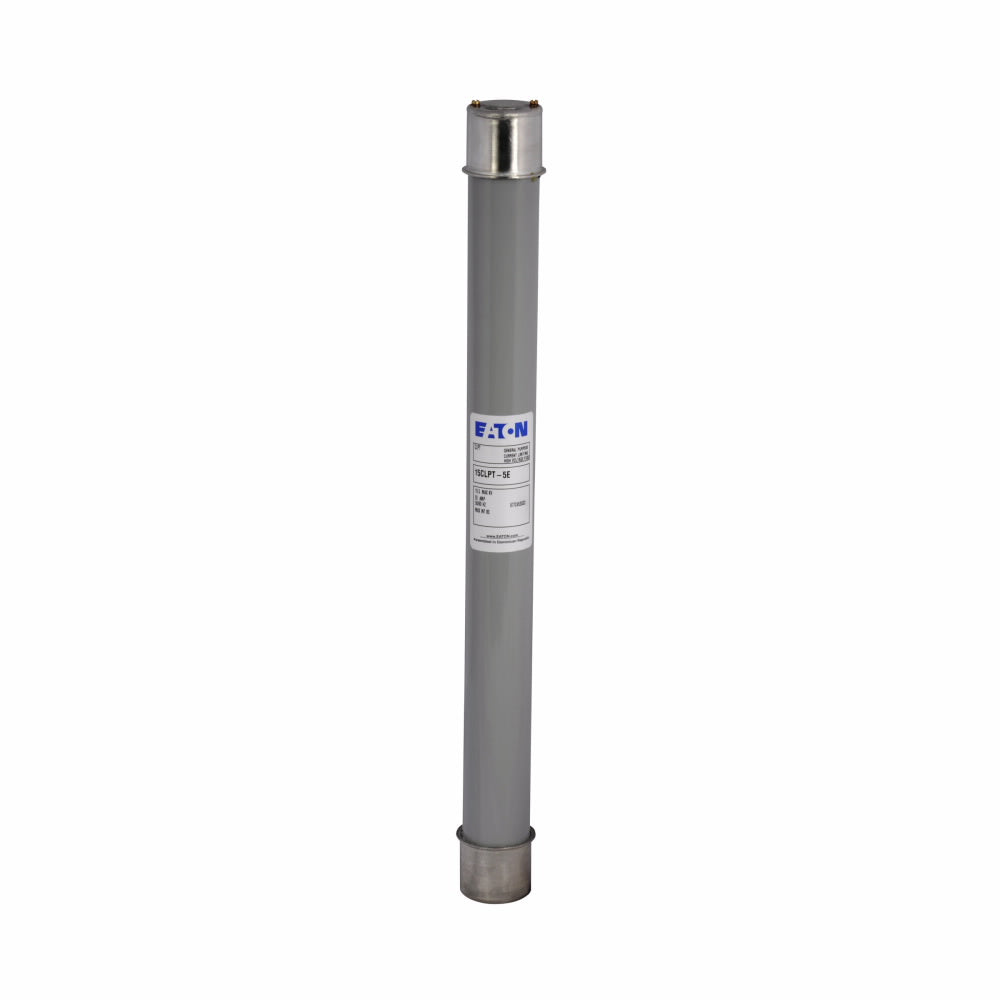

Bussmann 5CLPT-10E - Medium Voltage Fuse 10A 5500V (80kA AIC Rating)

Bussmann 5CLPT-10E is a medium voltage fuse designed for overcurrent protection in industrial power distribution systems. It features a 10A current rating and 5500V voltage rating, providing reliable circuit interruption capabilities. The fuse construction utilizes a single-barrel design with 1.6-inch diameter and compact 9.5-inch length, weighing 1.9 lb for straightforward installation. Certified to IEEE Std. C37.41 standards with Class E rating, this fuse delivers 80kA interrupting capacity at 5.5kV for robust performance. Typical applications include motor protection, transformer circuits, and feeder protection in industrial facilities requiring medium voltage protection.

Key Features & Specifications

• Type: Medium Voltage Fuse, CLPT family, single-barrel construction
• Voltage Rating: 5500V AC
• Current Rating: 10A
• Dimensions: 9.5in length × 1.6in height × 1.6in width
• Standards: IEEE Std. C37.41 certified
• Applications: Industrial power distribution, motor protection, transformer circuits
• AIC rating: [email protected]
• Class Rating: E
• Diameter: 1.6 inches
• Barrels: 1
• Clip Center: 8.1 inches
• Weight: 1.9 lb
• Country of Origin: United States

Product Identification

• UPC: 051712528986
• GTIN: 00786670215646
