Bussmann 5CLE1-65E - Class E Current-Limiting Fuse 65A 5500V (65kA Interrupting Rating)
Bussmann 5CLE1-65E - Class E Current-Limiting Fuse 65A 5500V (65kA Interrupting Rating)
Bussmann 5CLE1-65E - Class E Current-Limiting Fuse 65A 5500V (65kA Interrupting Rating)
Bussmann 5CLE1-65E - Class E Current-Limiting Fuse 65A 5500V (65kA Interrupting Rating)

Bussmann 5CLE1-65E - Class E Current-Limiting Fuse 65A 5500V (65kA Interrupting Rating)

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

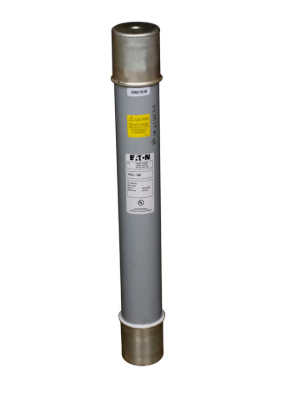

Bussmann 5CLE1-65E is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power systems. It features a 65A current rating and a 5500V voltage rating, providing reliable overcurrent protection in demanding applications. The fuse is constructed with a single-barrel ferrule connection design, measures 3 inches in diameter with a 14-inch clip center spacing, and has a robust build weighing 10 lb. It complies with industry standards for Class E fuses and is UL-recognized for safety and performance. Typical applications include motor protection, transformer circuits, and feeder protection in industrial facilities and utility substations.

Key Features & Specifications
  • Type: CLE-1 current-limiting fuse with ferrule connection, single barrel construction
  • Voltage Rating: 5500V AC
  • Current Rating: 65A
  • Dimensions: 3" diameter, 14" clip center spacing
  • Standards: UL Class E rated
  • Applications: Industrial motor protection, transformer circuits, feeder protection
  • AIC rating: [email protected]
  • Connection: Ferrule
  • Barrels: 1
  • Class Rating: E
  • Weight: 10 lb
