Bussmann 5CLE1-100E - Medium Voltage Fuse 100A (65kA AIC @ 5.5kV)
Bussmann 5CLE1-100E - Medium Voltage Fuse 100A (65kA AIC @ 5.5kV)
Bussmann 5CLE1-100E - Medium Voltage Fuse 100A (65kA AIC @ 5.5kV)
Bussmann 5CLE1-100E - Medium Voltage Fuse 100A (65kA AIC @ 5.5kV)

Bussmann 5CLE1-100E - Medium Voltage Fuse 100A (65kA AIC @ 5.5kV)

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

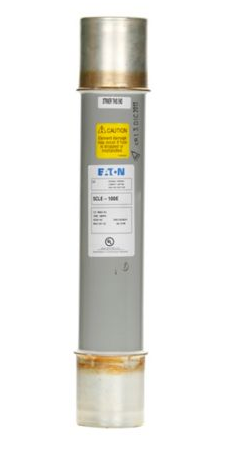

Bussmann 5CLE1-100E is a medium voltage fuse designed for providing high-interrupting capacity protection in industrial power systems. It features a 100A current rating and a 5500V voltage rating, engineered to safely clear high fault currents. The fuse is constructed with a single-barrel design featuring ferrule connections, a 3-inch diameter, and a 14-inch clip center spacing for standardized mounting. This Class E rated fuse complies with industry standards for medium voltage protection and carries an impressive 65kA interrupting rating at 5.5kV. Typical applications include motor circuits, transformers, and feeder protection in industrial facilities and utility substations where reliable medium voltage protection is critical.

Key Features & Specifications
  • Type: Medium Voltage Fuse, CLE-1 Class, Single Barrel, Ferrule Connection
  • Voltage Rating: 5500V AC
  • Current Rating: 100A
  • Dimensions: 3" Diameter, 14" Clip Center
  • Standards: Class E Rated
  • Applications: Industrial Power Systems, Motor Protection, Transformer Circuits
  • AIC Rating: 65kA @ 5.5kV
  • Connection: Ferrule
  • Barrels: 1
  • Class Rating: E
  • Diameter: 3 inches
  • Clip Center: 14 inches
  • Weight: 10 lb


Product Identification
  • UPC: 05171252853
  • GTIN: 00051712528535
