Eaton 5CLE-600E - Medium Voltage Fuse 600A 5.5kV (40kA AIC)
Eaton 5CLE-600E - Medium Voltage Fuse 600A 5.5kV (40kA AIC)
Eaton 5CLE-600E - Medium Voltage Fuse 600A 5.5kV (40kA AIC)
Eaton 5CLE-600E - Medium Voltage Fuse 600A 5.5kV (40kA AIC)
Eaton 5CLE-600E - Medium Voltage Fuse 600A 5.5kV (40kA AIC)
Eaton 5CLE-600E - Medium Voltage Fuse 600A 5.5kV (40kA AIC)

Eaton 5CLE-600E - Medium Voltage Fuse 600A 5.5kV (40kA AIC)

Eaton
Price
Save $7,517.20
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

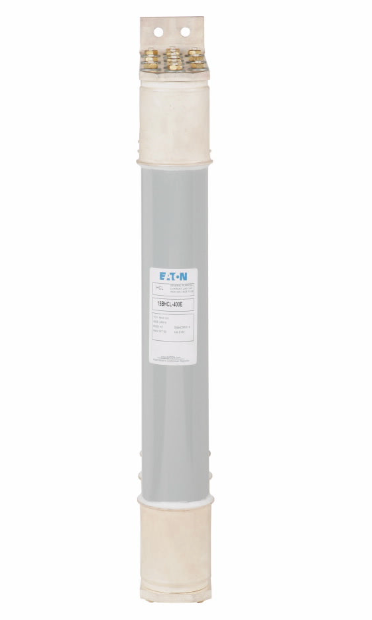

Eaton 5CLE-600E is a medium voltage power distribution fuse designed for high-current protection in industrial electrical systems. It features a 600A current rating and a 5.5kV voltage rating, providing robust overcurrent protection for demanding applications. The fuse is constructed with a two-barrel design, measures 28.9 inches in length with a 4-inch diameter, and has a weight of 35 lb. It is certified to IEEE Std. C37.41 and offers an interrupting rating of 40kA at 5.5kV, ensuring reliable performance and compliance with industry standards for medium voltage equipment protection.

Key Features & Specifications
  • Type: Medium Voltage Fuse, CLE type, two-barrel design
  • Voltage Rating: 5500V
  • Current Rating: 600A
  • Dimensions: 28.9 in (L) x 10.2 in (H) x 4.5 in (W)
  • Standards: Certified to IEEE Std. C37.41
  • Applications: High-current protection in industrial power distribution
  • Class Rating: E
  • AIC rating: 40kA @ 5.5kV
  • Diameter: 4 in
  • Barrels: 2
  • Weight: 35 lb


Product Identification
  • UPC: 786670219514
  • GTIN: 00786670219514
