Bussmann 5CLE-20E - CLE Fuse 20A 5500V (50kA AIC)

Bussmann
Price
Save $-3,798.68
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

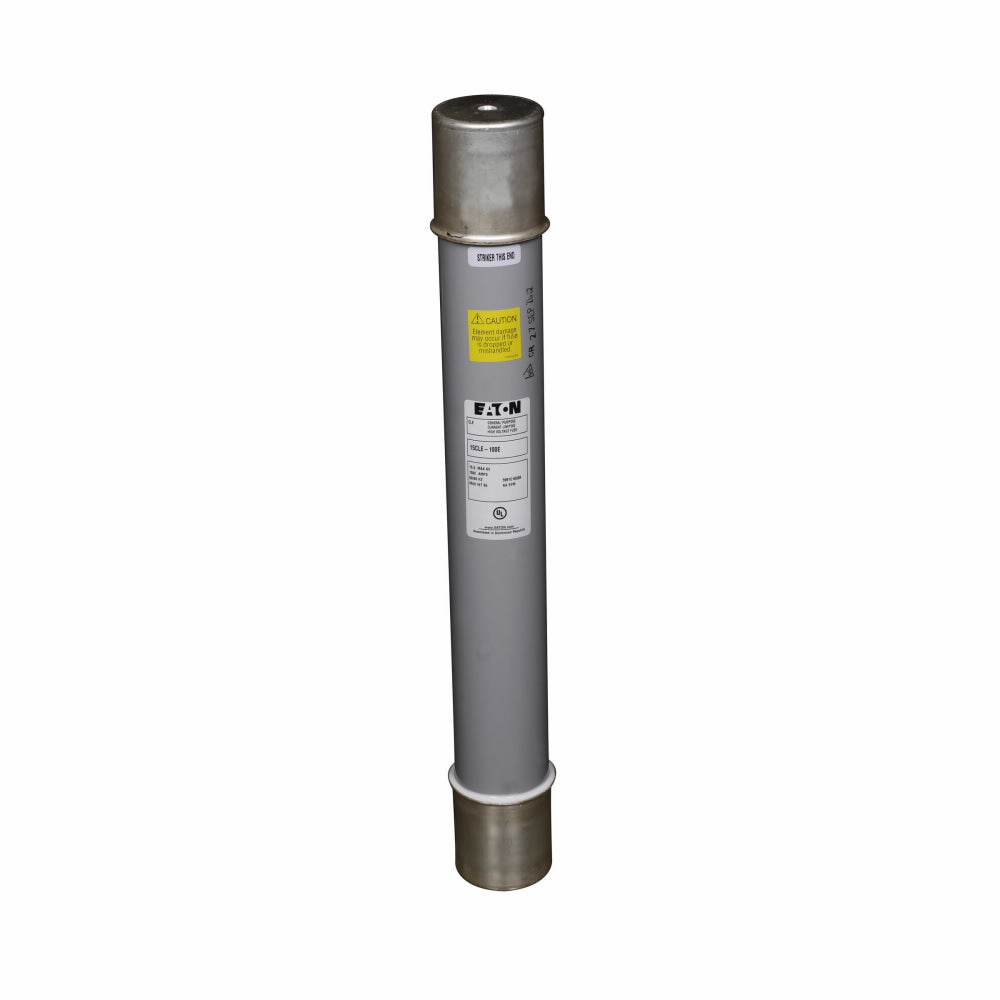

Bussmann 5CLE-20E is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. It provides a 20A current rating and a 5500V voltage rating for robust circuit protection. The fuse features a single-barrel CLE-type construction with a 2-inch diameter and a 12.9-inch length, weighing 6 lb, and is engineered with an 11.5-inch clip center for secure mounting. It complies with the IEEE Std. C37.41 standard and offers an interrupting rating of 50kA at 5.5kV, making it suitable for demanding applications such as motor protection, transformer protection, and feeder circuits in medium-voltage switchgear.

Key Features & Specifications
  • Type: CLE-type, single-barrel, medium voltage current-limiting fuse
  • Voltage Rating: 5500V
  • Current Rating: 20A
  • Dimensions: 12.9 in x 2 in x 2 in (L x H x W)
  • Standards: IEEE Std. C37.41
  • Applications: Motor protection, transformer protection, feeder circuits in industrial power distribution
  • Class Rating: E
  • AIC rating: 50kA @ 5.5kV
  • Clip Center: 11.5 in
  • Diameter: 2 in
  • Weight: 6 lb
  • Barrels: 1


Product Identification
  • UPC: 051712528672
  • GTIN: 00786670216117
