Eaton 5BHLE-30E - Medium Voltage Fuse 30A 5.5kV

Eaton
Price
Save $1,065
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

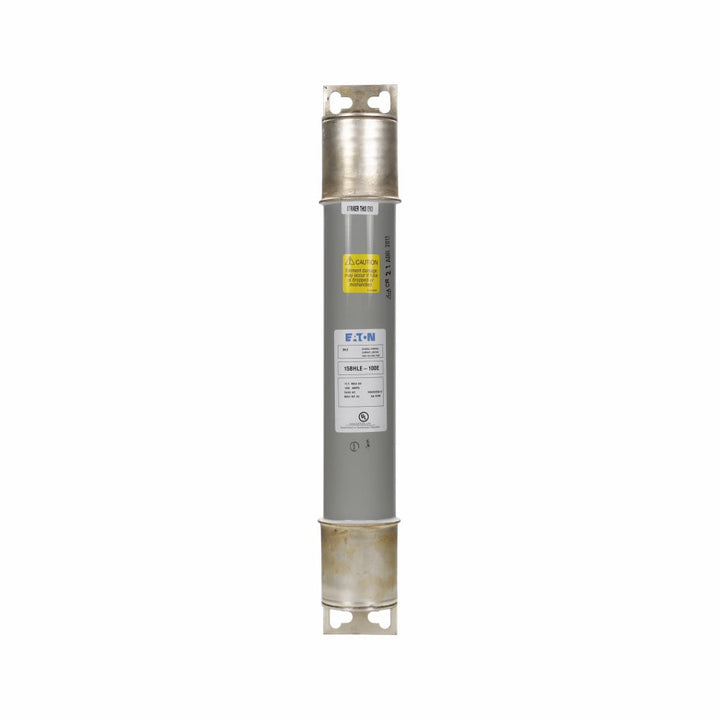

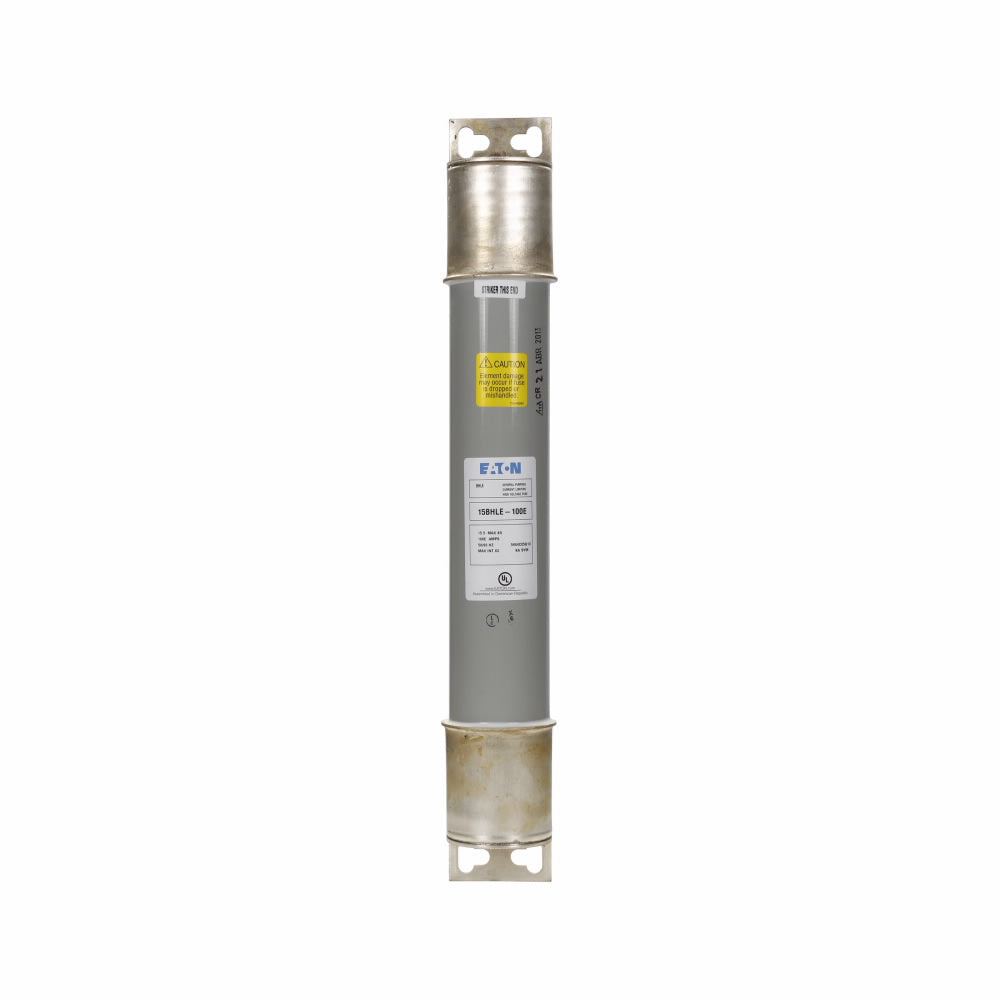

Eaton 5BHLE-30E is a medium voltage fuse designed for high-interrupting capacity protection in industrial power distribution systems up to 5.5kV. It features a 30A current rating and a 63kA symmetrical interrupting rating at its full 5500V voltage, housed in a robust single-barrel construction with a 3-inch diameter and a 12-inch clip center dimension for secure mounting. This Class E fuse is engineered for reliable performance in demanding applications such as transformer protection, motor circuits, and feeder protection, meeting industry standards for medium voltage protection. Its physical dimensions are 19.25 inches in length by 3.6 inches in height by 3 inches in width, with a weight of 9 lb, ensuring a durable and space-efficient design.

Key Features & Specifications
  • Type: Medium Voltage Fuse, BHLE type, single-barrel construction
  • Voltage Rating: 5500V
  • Current Rating: 30A
  • Dimensions: 19.25 in L x 3.6 in H x 3 in W
  • Standards: Class E rating
  • Applications: Transformer protection, motor circuits, feeder protection
  • AIC rating: 63kA @ 5.5kV
  • Diameter: 3 inches
  • Clip Center: 12 inches
  • Barrels: 1
  • Weight: 9 lb


Product Identification
  • UPC: 782116072903
  • GTIN: 00782116072903
