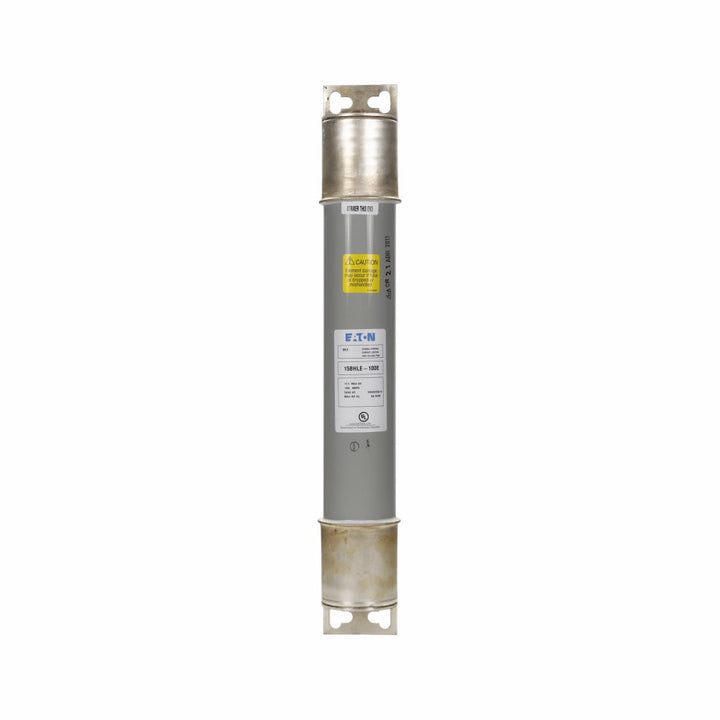

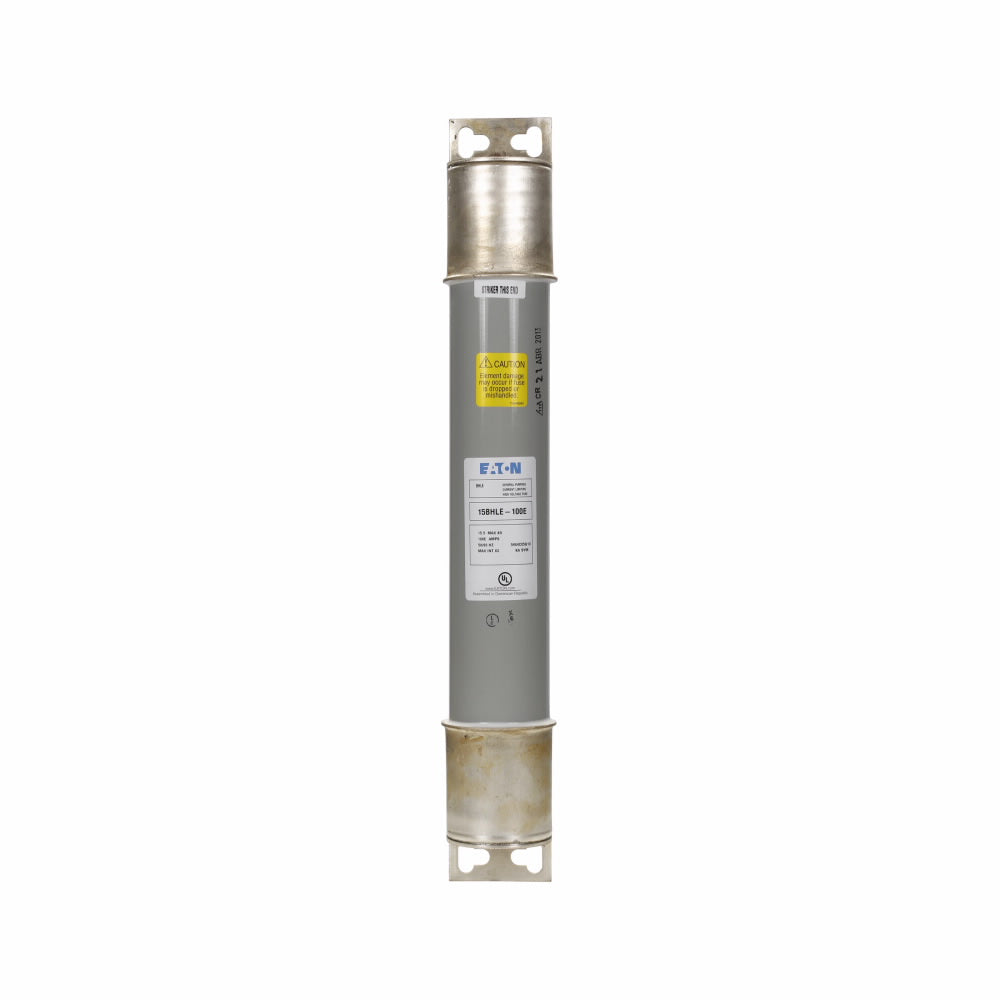

Eaton 5BHLE-250E - Medium Voltage Fuse 250A 5500V (63kA AIC)

Eaton
Price
Save $2,407.59
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 5BHLE-250E is a medium-voltage current-limiting fuse designed for protecting electrical distribution equipment in industrial power systems. It provides a 250A current rating and a 5500V voltage rating for robust circuit protection, constructed as a single-barrel fuse with a 3-inch diameter and overall dimensions of 19.25 x 3.6 x 3 inches (LxHxW) weighing 9 lb. The fuse is certified to IEEE Std. C37.41 and features an E class rating with a 63kA interrupting capacity at 5.5kV, ensuring reliable performance in demanding applications such as motor control centers, transformers, and feeder circuits.

Key Features & Specifications
  • Type: BHLE medium-voltage current-limiting fuse, single barrel construction
  • Voltage Rating: 5500V
  • Current Rating: 250A
  • Dimensions: 19.25 in x 3.6 in x 3 in (Length x Height x Width)
  • Standards: IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power distribution
  • AIC rating: 63kA at 5.5kV
  • Class Rating: E
  • Barrels: 1
  • Diameter: 3 in
  • Clip Center: 12 in
  • Weight: 9 lb
  • Family: HLE
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 051712528399
  • GTIN: 00782116073009
