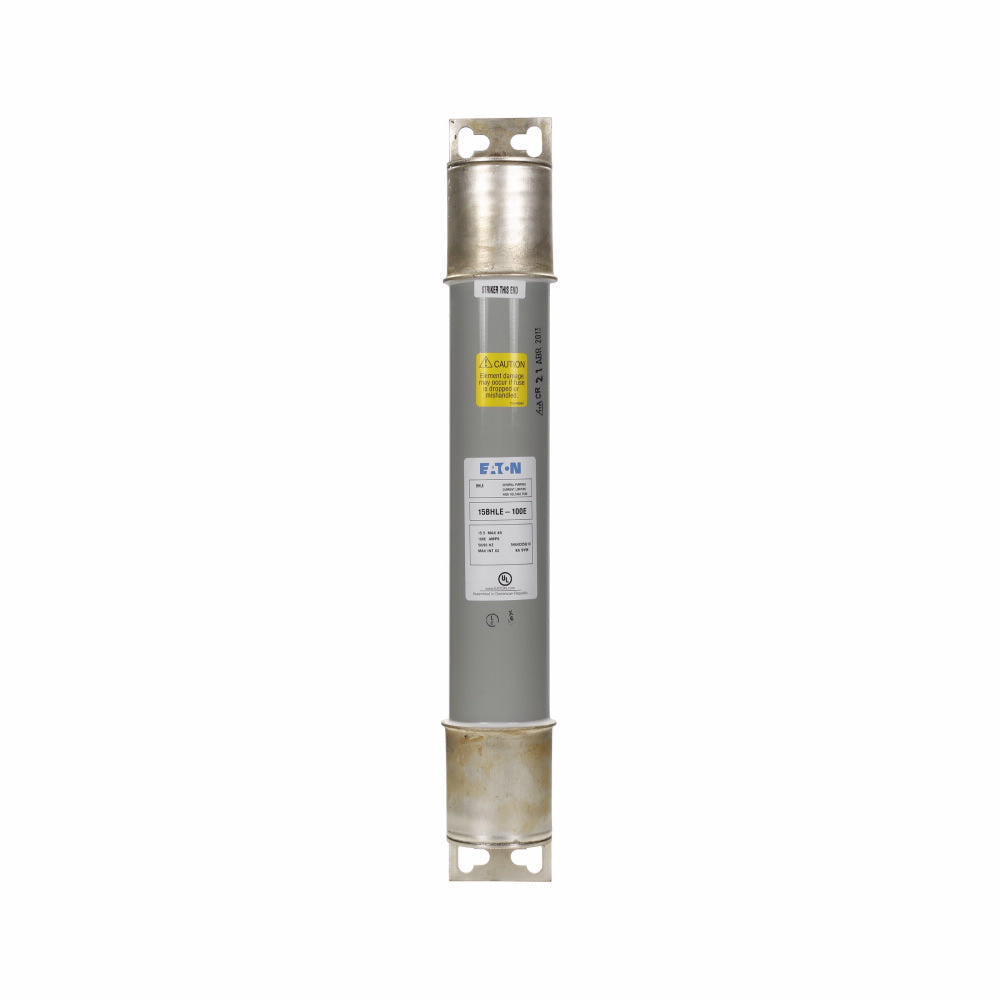

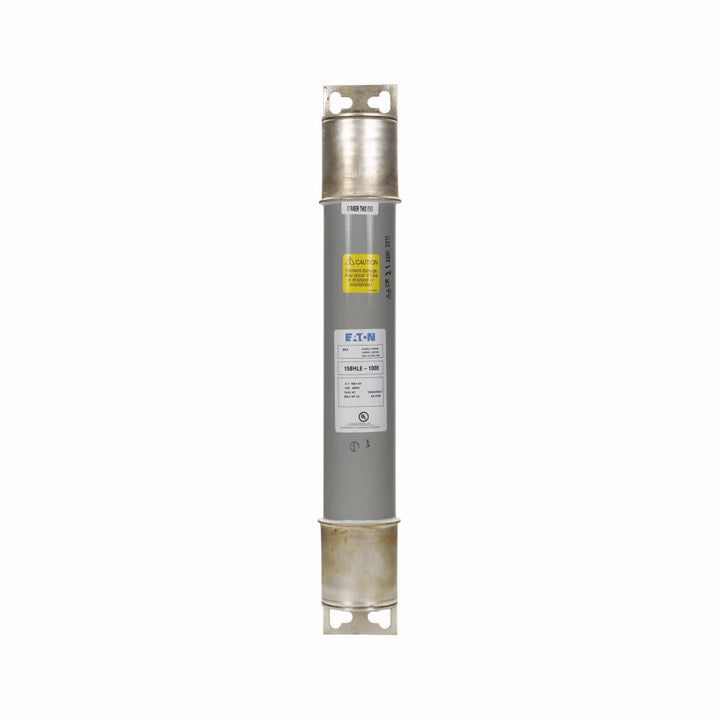

Bussmann 5BHLE-150E - Medium Voltage Fuse 150A ([email protected] Interrupting Rating)

Bussmann 5BHLE-150E is a medium voltage fuse designed for providing high-interrupting capacity protection in industrial power systems. This Class E fuse features a 150A current rating and 5500V voltage rating, engineered to safely clear faults with an interrupting rating of 63kA at 5.5kV. The single-barrel construction measures 15.9 inches in length with a 3-inch diameter and utilizes 12-inch clip center spacing for standardized mounting. Manufactured to meet industry standards for medium voltage protection, this HLE family fuse is typically applied in motor control centers, transformers, and feeder circuits requiring reliable overcurrent protection in demanding industrial environments.

Key Features & Specifications

• Type: Medium Voltage Fuse, Class E, Single Barrel Construction
• Voltage Rating: 5500V AC
• Current Rating: 150A
• Dimensions: 15.9" Length × 3" Height × 3" Width
• Standards: Industry Standard Medium Voltage Protection
• Applications: Industrial Power Systems, Motor Control Centers, Transformers, Feeder Circuits
• AIC Rating: [email protected]
• Barrels: 1
• Clip Center: 12 inches
• Class Rating: E
• Diameter: 3 inches
• Weight: 8 lb
• Family: HLE
• Type: BHLE

Product Identification

• UPC: 051712528344
