Eaton 5BHLE-125E - Medium Voltage Fuse 125A 5500V (63kA AIC)

Eaton
Price
Save $-30.93
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

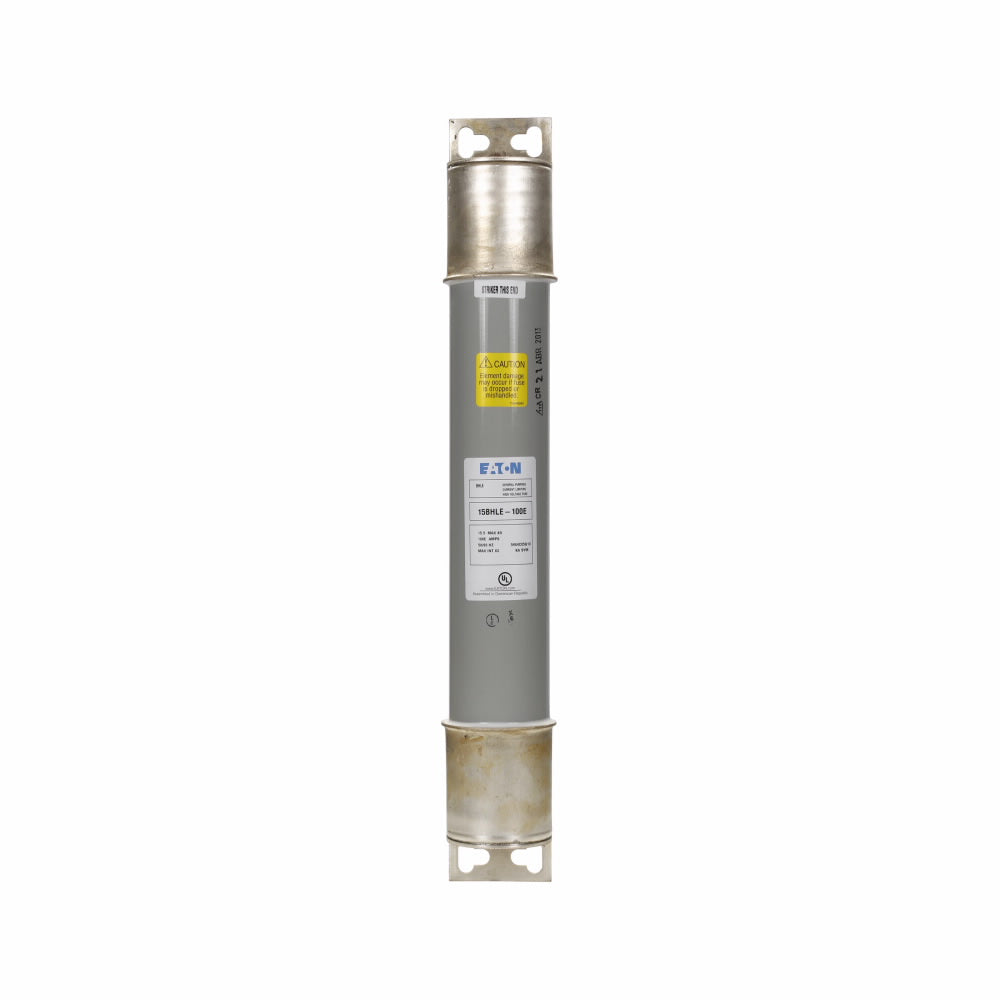

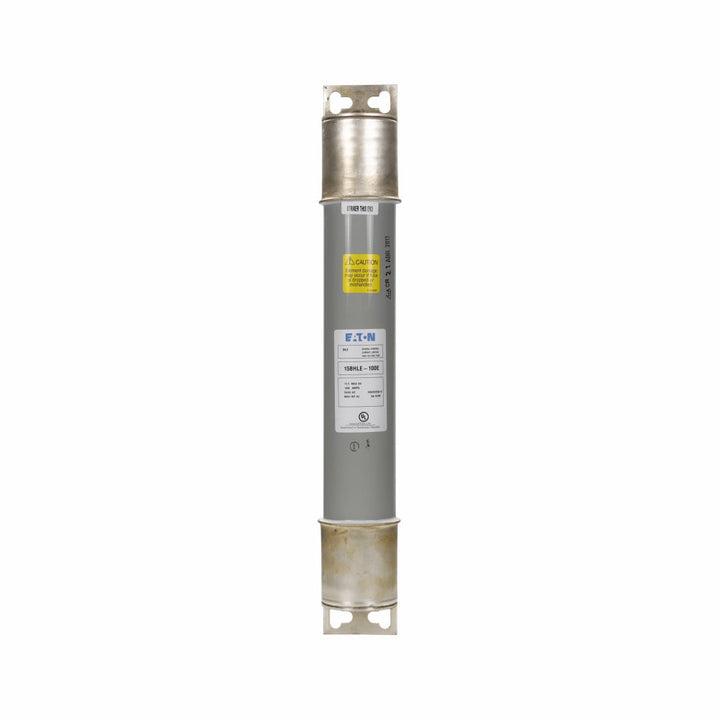

Eaton 5BHLE-125E is a medium voltage fuse designed for high-capacity circuit protection in industrial power distribution systems. It provides a 125A current rating and a 5500V voltage rating, engineered to interrupt fault currents up to 63kA at 5.5kV. The fuse features a robust single-barrel construction with a 3-inch diameter and a 12-inch clip center spacing, housed within a compact form factor measuring 19.25 x 3.6 x 3 inches and weighing 9 lb. It complies with the IEEE Std. C37.41 standard for design and testing, ensuring reliable performance in demanding applications such as motor protection, transformer protection, and feeder circuits.

Key Features & Specifications
  • Type: BHLE medium voltage fuse, single-barrel construction
  • Voltage Rating: 5500V
  • Current Rating: 125A
  • Dimensions: 19.25 in x 3.6 in x 3 in (Length/Depth x Height x Width)
  • Standards: IEEE Std. C37.41
  • Applications: Industrial power distribution, motor protection, transformer protection, feeder circuits
  • Class Rating: E
  • AIC rating: [email protected]
  • Clip Center: 12 in
  • Diameter: 3 in
  • Barrels: 1
  • Weight: 9 lb


Product Identification
  • UPC: 782116072965
  • GTIN: 00782116072965
