Eaton 5BHLE-100E - Medium Voltage Fuse 100A 5500V (63kA AIC)

Eaton
Price
Save $91.10
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

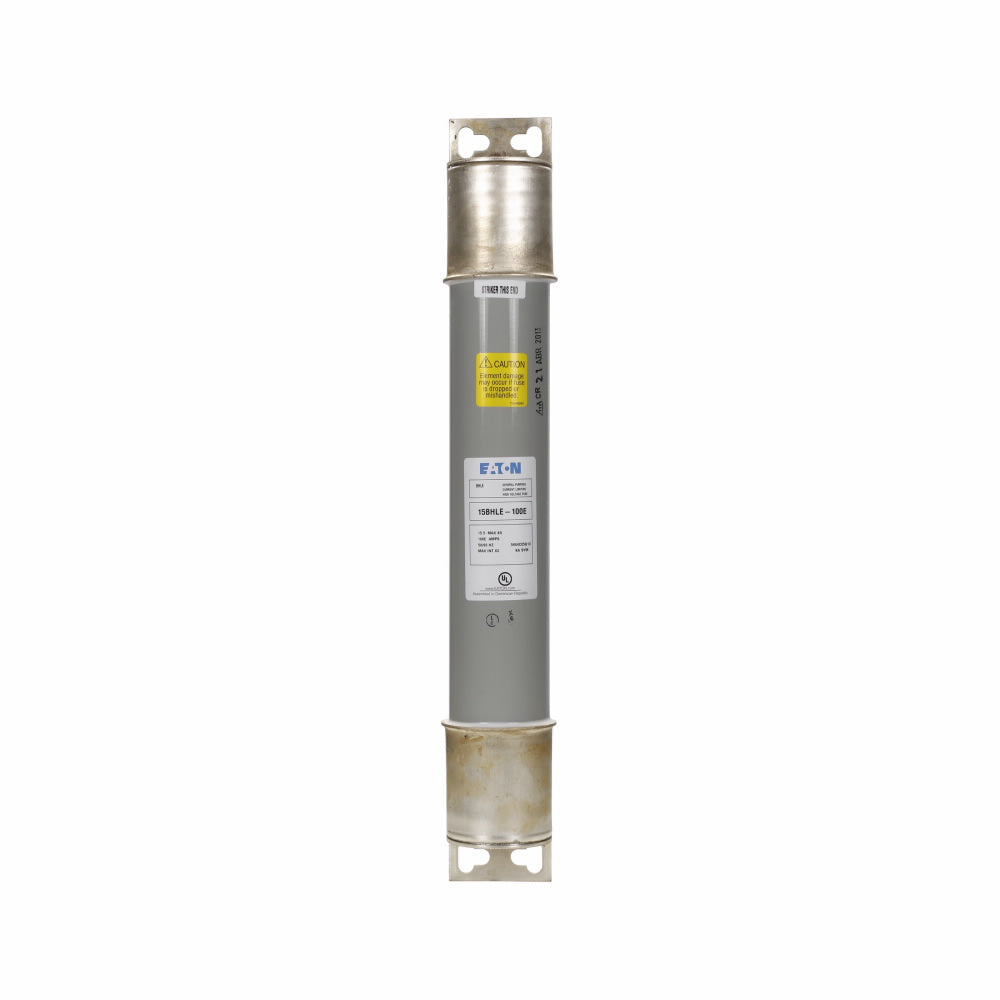

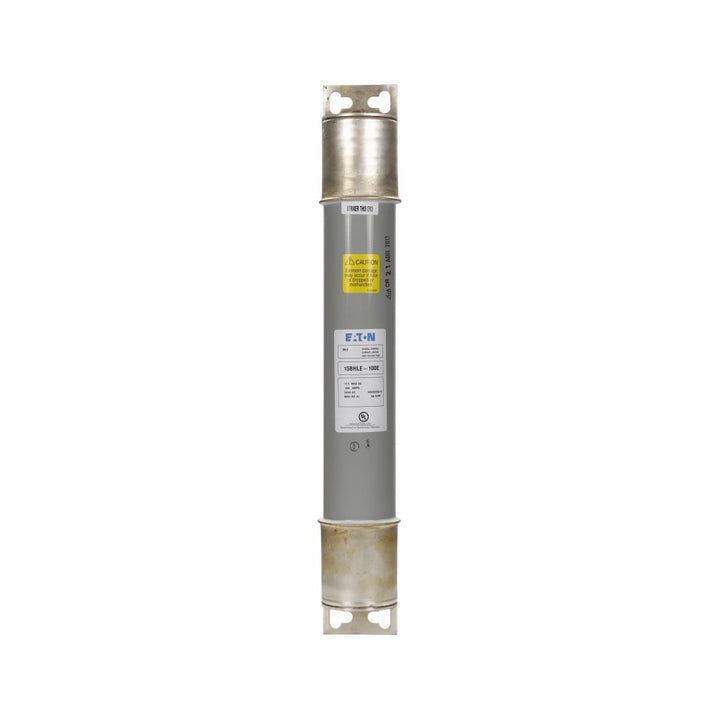

Eaton 5BHLE-100E is a medium voltage current-limiting power fuse designed for protecting electrical equipment in industrial power distribution systems. It features a 100A current rating and a 5500V voltage rating, providing reliable overcurrent and short-circuit protection. The fuse is constructed as a single-barrel unit with a 3-inch diameter and measures 19.25 inches in length, featuring a 12-inch clip center spacing for standardized mounting. It is engineered to comply with IEEE Std. C37.41 and offers an interrupting rating of 63kA at 5.5kV. Typical applications include the protection of transformers, capacitors, and feeders in utility and industrial medium-voltage switchgear.

Key Features & Specifications
  • Type: BHLE medium voltage, current-limiting power fuse, single barrel
  • Voltage Rating: 5500V
  • Current Rating: 100A
  • Dimensions: 19.25 in L x 3.6 in H x 3 in W
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, capacitors, and feeders in industrial power systems
  • AIC rating: [email protected]
  • Class Rating: E
  • Barrels: 1
  • Diameter: 3 in
  • Clip Center: 12 in
  • Weight: 9 lb


Product Identification
  • UPC: 782116072958
  • GTIN: 00782116072958
