Bussmann 5BCLS-6R - Medium Voltage Current-Limiting Fuse 170A@5080V (Class R, 50kA AIC)
Regular price
$2,909.46
$2,909.46
Regular price
$2,317.09
$2,317.09
Sale price
$2,909.46
$2,909.46
Save $-592.37
/
- In stock, ready to ship
- Backordered, shipping soon

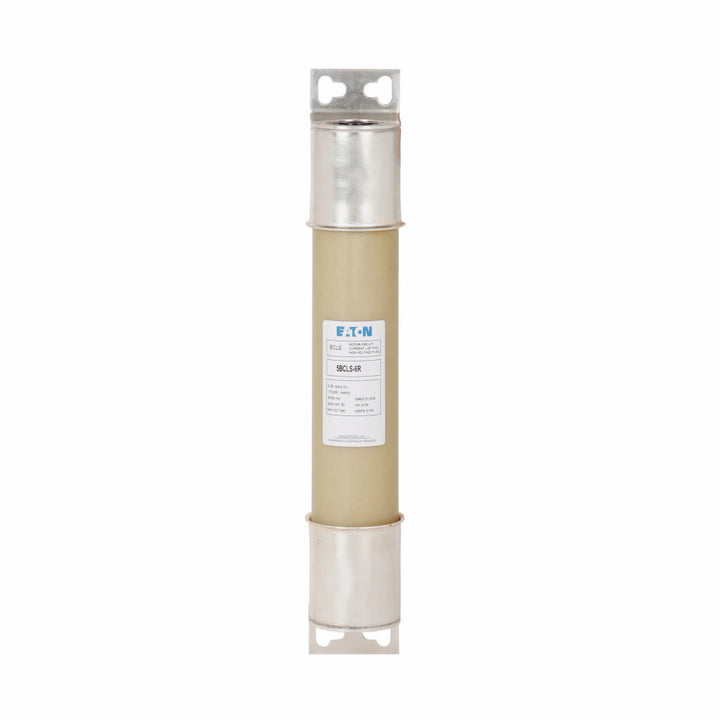

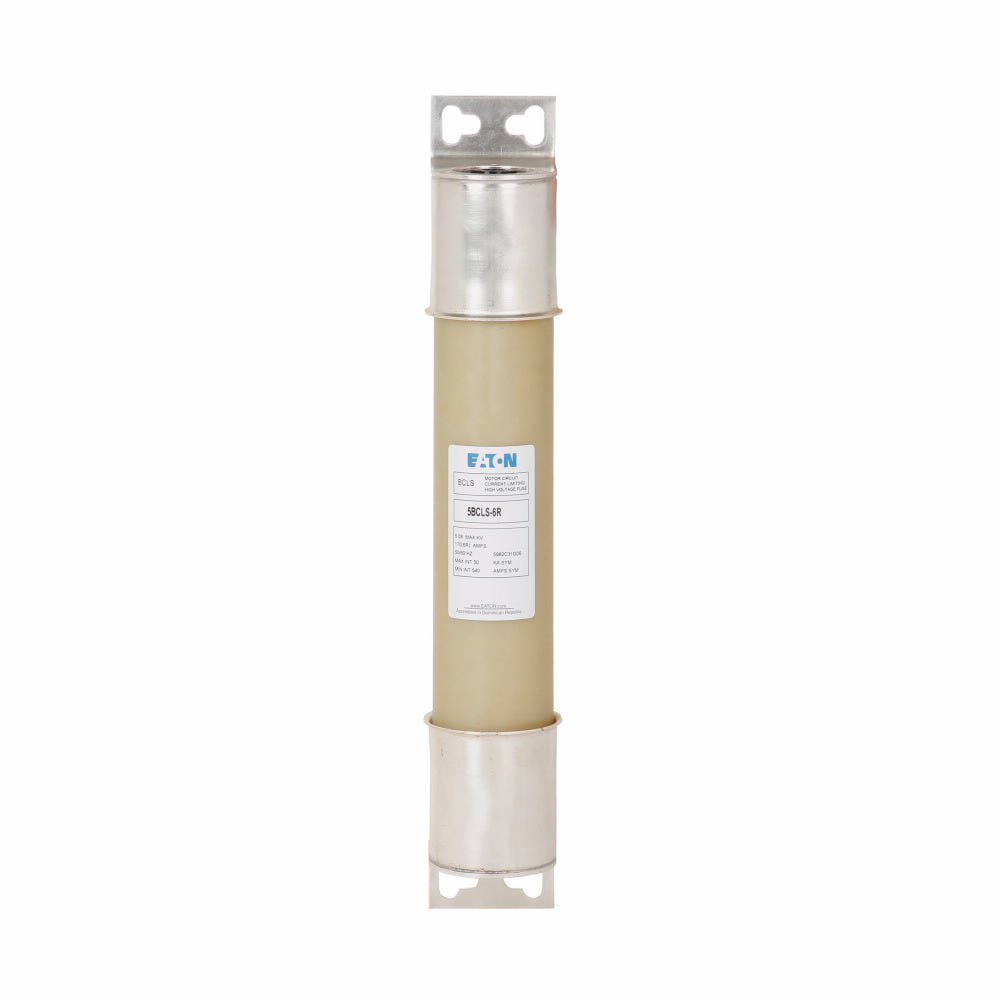

Bussmann 5BCLS-6R is a medium voltage current-limiting fuse designed for protecting electrical distribution systems and equipment. It features a 5080V AC voltage rating and a 170A current rating, providing reliable overcurrent protection in demanding industrial environments. The fuse construction includes a single-barrel design with bolt-on connections, measuring 15.9 inches in length with a 3-inch diameter and weighing 5.5 lb. Certified to IEEE Std. C37.41 standards, this Class R fuse offers 50kA interrupting capacity at 5.08kV and is typically employed in industrial power distribution, motor circuits, and transformer protection applications.
Key Features & Specifications
Product Identification
Key Features & Specifications
- Type: Medium voltage current-limiting fuse, single barrel, bolt-on connection
- Voltage Rating: 5080V AC
- Current Rating: 170A
- Dimensions: 15.9" L × 3" W × 3" H
- Standards: IEEE Std. C37.41
- Applications: Industrial power distribution, motor protection, transformer circuits
- Class Rating: R
- AIC rating: [email protected]
- Diameter: 3 inches
- Weight: 5.5 lb
- Barrels: 1
- Connection: Bolt-On
Product Identification
- UPC: 051712528214
- GTIN: 00782114893685
