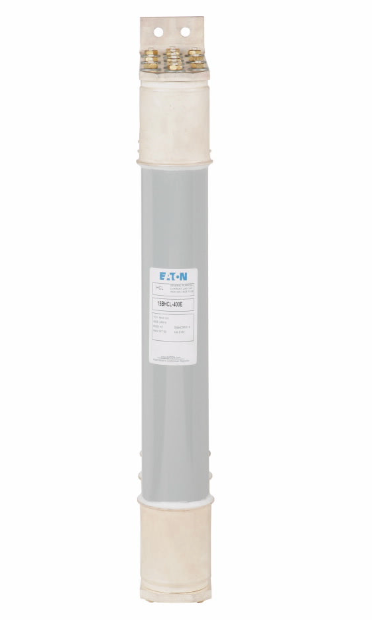

Eaton 5BCLS-600E is a medium voltage current-limiting fuse designed for protecting electrical equipment in industrial power distribution systems. It provides reliable overcurrent and short-circuit protection with a 600A current rating and a 5500V voltage rating, featuring a robust Class E construction with a 3-inch diameter and bolt-in connection terminals for secure installation. The fuse is built with a two-barrel design, measures 32 in x 7 in x 54.65 in, weighs 15 lb, and complies with the IEEE Std. C37.41 standard for performance and safety. Its typical applications include safeguarding transformers, motors, and feeders in utility and heavy industrial environments where high interrupting capacity is required.

Key Features & Specifications
  • Type: BCLS, Medium Voltage Current-Limiting Fuse, 2-Barrel Design
  • Voltage Rating: 5500V
  • Current Rating: 600A
  • Class Rating: Class E
  • Connection: Bolt In
  • Dimensions: 32 in (Length/Depth) x 7 in (Height) x 54.65 in (Width)
  • Weight: 15 lb
  • Diameter: 3 in
  • Clip Center: 17.88 in
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, motors, and feeders in industrial power distribution
  • Family: CLS Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 782116317370
  • GTIN: 00782116317370
