Eaton 5BCLS-36R - Class R Fuse 650A @ 4800V (50kA AIC)
Eaton 5BCLS-36R - Class R Fuse 650A @ 4800V (50kA AIC)
Eaton 5BCLS-36R - Class R Fuse 650A @ 4800V (50kA AIC)
Eaton 5BCLS-36R - Class R Fuse 650A @ 4800V (50kA AIC)
Eaton 5BCLS-36R - Class R Fuse 650A @ 4800V (50kA AIC)
Eaton 5BCLS-36R - Class R Fuse 650A @ 4800V (50kA AIC)

Eaton 5BCLS-36R - Class R Fuse 650A @ 4800V (50kA AIC)

Eaton
Price
Save $-1,281.27
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

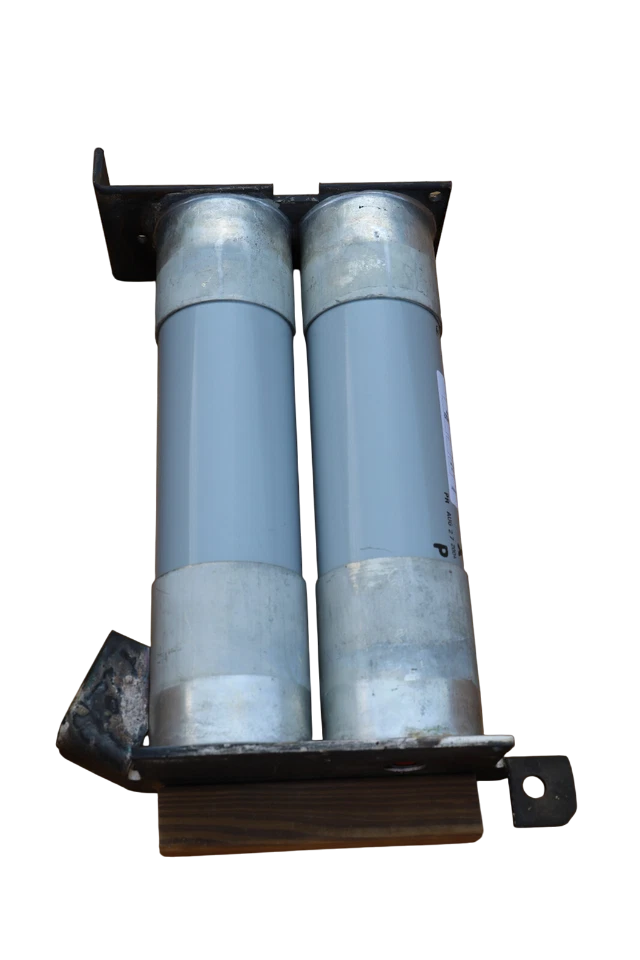

Eaton 5BCLS-36R is a medium-voltage current-limiting fuse designed for high-interrupting capacity protection in industrial power distribution systems. It is rated for 4800V AC operation with a continuous current rating of 650A and an interrupting rating of 50kA at 5.5kV. The fuse features a robust two-barrel construction with a 3-inch diameter and bolt-in connection terminals, engineered to a clip center spacing of 17.88 inches for compatible mounting. It is manufactured to IEEE Std. C37.41 standards, ensuring reliable performance for protecting transformers, capacitors, and feeders in utility and heavy industrial applications.

Key Features & Specifications
  • Type: BCLS Class R, two-barrel, current-limiting medium-voltage fuse
  • Voltage Rating: 4800V AC
  • Current Rating: 650A
  • Dimensions: 19.5 in L x 9 in H x 4.5 in W
  • Standards: Certified to IEEE Std. C37.41
  • Applications: Protection for transformers, capacitors, and feeders in industrial power systems
  • AIC rating: 50kA @ 5.5kV
  • Connection: Bolt In
  • Class Rating: R
  • Barrels: 2
  • Diameter: 3 inches
  • Clip Center: 17.88 inches
  • Weight: 30 lb
  • Family: CLS Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 782116317356
  • GTIN: 00782116317356
