Eaton 5BCLS-32R - BCLS Medium Voltage Fuse 600A (50kA AIC)
Eaton 5BCLS-32R - BCLS Medium Voltage Fuse 600A (50kA AIC)
Eaton 5BCLS-32R - BCLS Medium Voltage Fuse 600A (50kA AIC)
Eaton 5BCLS-32R - BCLS Medium Voltage Fuse 600A (50kA AIC)

Eaton 5BCLS-32R - BCLS Medium Voltage Fuse 600A (50kA AIC)

Eaton
Price
Save $2,997
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

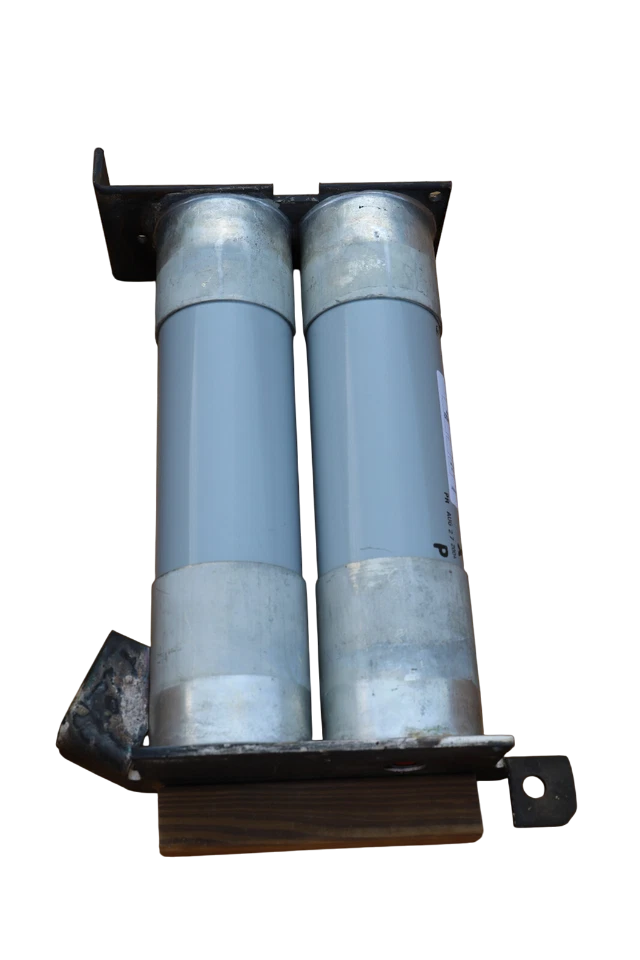

Eaton 5BCLS-32R is a medium-voltage current-limiting fuse designed for protecting electrical distribution equipment up to 5.5kV. It features a 4800V voltage rating and a 600A continuous current rating, with a high interrupting capacity of 50kA. The fuse is constructed with a dual-barrel design, a 3-inch diameter, and bolt-in connections, housed within a robust assembly measuring 19.5 x 9 x 4.5 inches and weighing 30 lb. It is engineered and tested to comply with the IEEE Std. C37.41 standard, ensuring reliable performance in demanding industrial applications such as motor control centers, transformers, and feeder circuits.

Key Features & Specifications
  • Type: BCLS dual-barrel, medium-voltage current-limiting fuse
  • Voltage Rating: 4800V
  • Current Rating: 600A
  • Dimensions: 19.5 in (L) x 9 in (H) x 4.5 in (W)
  • Weight: 30 lb
  • Diameter: 3 in
  • Class Rating: R
  • Connection: Bolt In
  • Barrels: 2
  • Standards: IEEE Std. C37.41
  • AIC Rating: 50kA @ 5.5kV
  • Clip Center: 17.88 in
  • Applications: Protection for transformers, motors, and feeders in industrial power distribution
  • Family: CLS Series
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 782116317349
  • GTIN: 00782116317349
