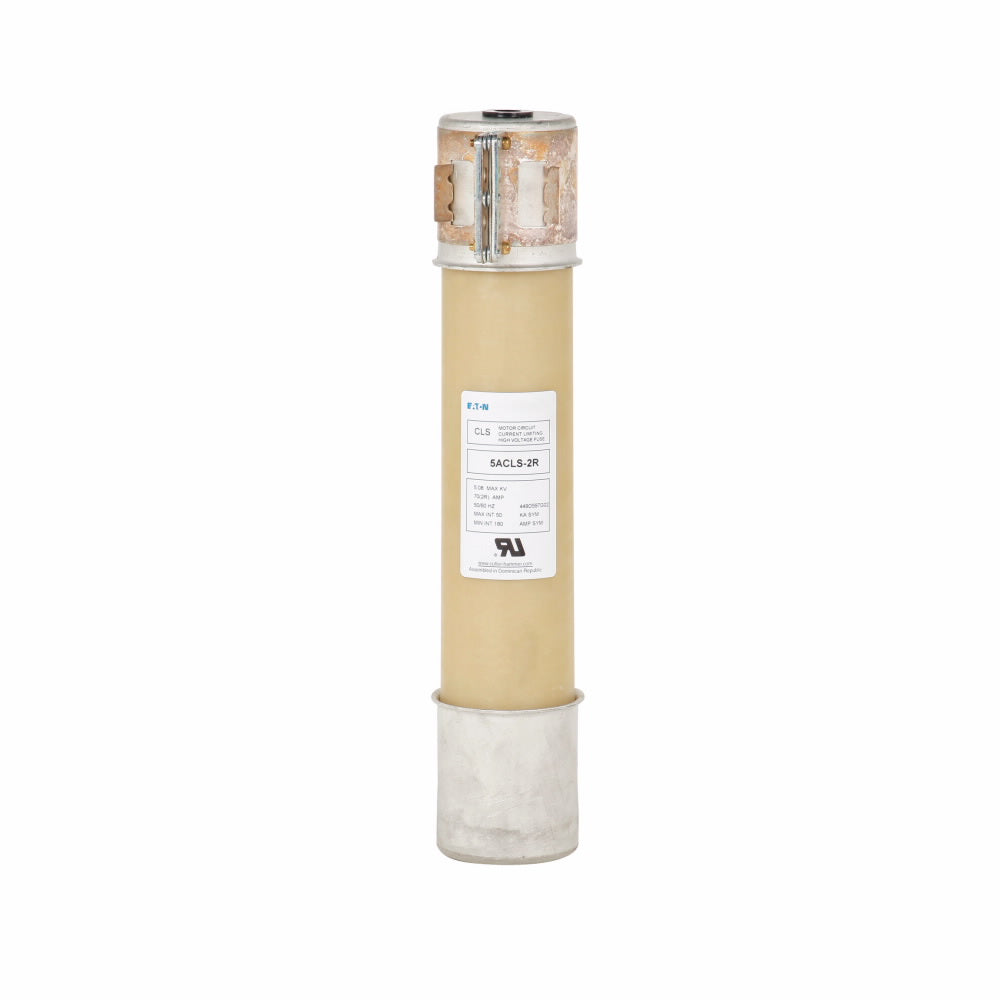

Eaton 5ACLS-2R - Medium Voltage Fuse 70A (Class R, 5.08kV)

Eaton
Price
Save $375
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 5ACLS-2R is a medium-voltage current-limiting fuse designed for protecting transformers, motors, and feeders in industrial power systems up to 5.08kV. It features a 70A current rating and a 50kA asymmetrical interrupting rating at its rated voltage, housed within a robust, single-barrel ferrule-connection design measuring 15.9 inches in length with a 3-inch diameter. Constructed as a Class R expulsion-type fuse, it complies with IEEE Std. C37.41 for reliable performance in demanding electrical environments, typically applied in switchgear, motor starters, and transformer protection circuits where high fault current interruption is critical.

Key Features & Specifications
  • Type: ACLS, Medium Voltage Current-Limiting, Expulsion, Single Barrel
  • Voltage Rating: 5080V AC
  • Current Rating: 70A
  • Dimensions: 15.9 in L x 4.2 in H x 3 in W
  • Weight: 9 lb
  • Diameter: 3 in
  • Class Rating: R
  • Connection: Ferrule
  • Barrels: 1
  • Standards: IEEE Std. C37.41
  • AIC Rating: 50kA @ 5.08kV
  • Applications: Transformer, Motor, and Feeder Protection in Industrial Power Systems
  • Country of Origin: United States


Product Identification
  • UPC: 786670221296
  • GTIN: 00786670221296
