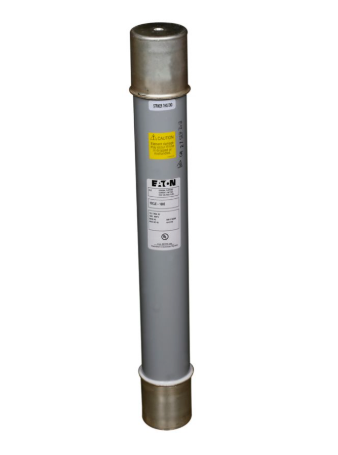

Eaton 5ACLS-26R - Medium Voltage Current-Limiting Fuse 480A @ 5080V (Class R, 50kA AIC)
Eaton 5ACLS-26R - Medium Voltage Current-Limiting Fuse 480A @ 5080V (Class R, 50kA AIC)

Eaton 5ACLS-26R - Medium Voltage Current-Limiting Fuse 480A @ 5080V (Class R, 50kA AIC)

Eaton
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton 5ACLS-26R is a medium-voltage current-limiting fuse designed for robust circuit protection in industrial power systems. It features a 480A current rating and 5080V voltage rating, providing reliable interruption capabilities for high-energy circuits. The fuse utilizes a two-barrel ferrule connection design with a 3-inch diameter and 12-inch clip center spacing, constructed for durable performance in demanding environments. This Class R fuse meets industry standards for medium-voltage applications with a 50kA interrupting rating at 5080V. Typical applications include motor control centers, switchgear, and industrial power distribution systems requiring high-interrupting capacity protection.

Key Features & Specifications
  • Type: ACLS medium-voltage current-limiting fuse with ferrule connection
  • Voltage Rating: 5080V AC
  • Current Rating: 480A
  • Dimensions: 3" diameter, 12" clip center spacing
  • Standards: Class R rated
  • Applications: Industrial power distribution, motor control centers, switchgear
  • AIC Rating: 50kA @ 5.08kV
  • Connection: Ferrule
  • Barrels: 2
  • Class Rating: R
  • Weight: 18 lb
  • Family: CLS
  • Item Subcategory: Medium Voltage
