Westinghouse 5978C62G02 - Medium Voltage Fuse 25A 4300V (Class C, 80kA AIC)
Westinghouse 5978C62G02 - Medium Voltage Fuse 25A 4300V (Class C, 80kA AIC)

Westinghouse 5978C62G02 - Medium Voltage Fuse 25A 4300V (Class C, 80kA AIC)

Westinghouse
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

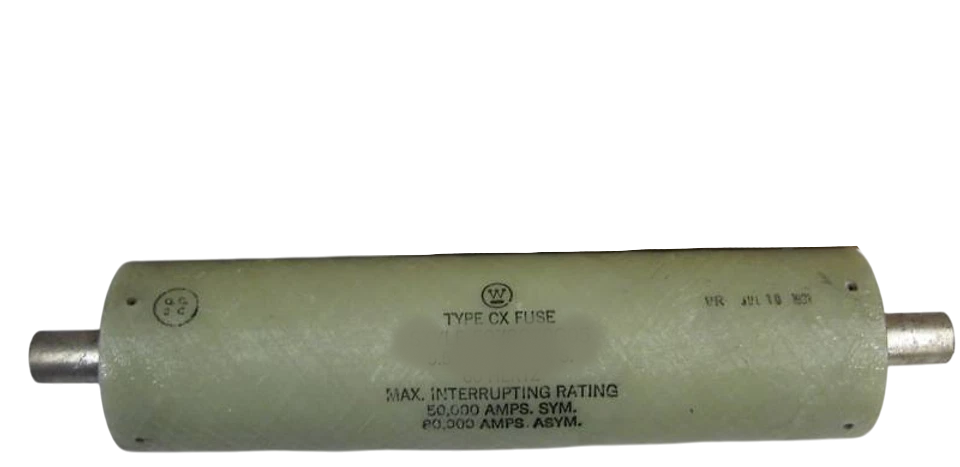

Westinghouse 5978C62G02 is a medium voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. This Class C fuse operates at 4300V with a 25A current rating and provides 80kA interrupting capacity at rated voltage. Constructed as a single-barrel design with clip-style connections, the fuse features a 1.13-inch diameter and weighs 5.19 lb for robust performance in demanding environments. It complies with industry standards for medium voltage protection applications and is typically deployed in motor control centers, transformer protection, and industrial power distribution networks where reliable overcurrent protection is critical.

Key Features & Specifications
  • Type: Medium voltage current-limiting fuse, Class C rating, single-barrel construction
  • Voltage Rating: 4300V AC
  • Current Rating: 25A
  • Dimensions: 1.13-inch diameter
  • Standards: Industry standards for medium voltage protection
  • Applications: Industrial power distribution, motor control centers, transformer protection
  • AIC rating: 80kA@4300V
  • Connection: Clip Style
  • Barrels: 1
  • Class Rating: C
  • Weight: 5.19 lb
  • Family: CX
  • Type: CX
  • Item Subcategory: Medium Voltage
