55GFMSJ200E Bussmann Medium Voltage Fuse 5500V 200A Fuse - Essential Electric Supply
55GFMSJ200E Bussmann Medium Voltage Fuse 5500V 200A Fuse - Essential Electric Supply

Bussmann 55GFMSJ200E - DIN Fuse 200A 5500V (65kA AIC)

Bussmann
Price
Save $-2,854.38
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

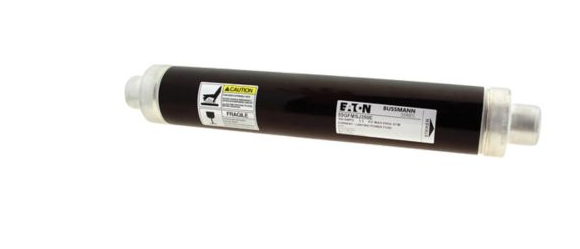

Bussmann 55GFMSJ200E is a medium voltage DIN fuse designed for high-current protection in industrial power distribution systems. It features a 200A current rating and a 5500V voltage rating, providing reliable interruption of fault currents up to 65kA at 5.5kV. The fuse is constructed with a single-barrel, ferrule connection design, measures 20.078 inches in length with a 2-inch diameter, and has a clip center spacing of 17.4 inches. It complies with Class E fuse standards and is engineered for demanding applications such as motor protection, transformer protection, and feeder circuit protection in medium voltage switchgear and control equipment.

Key Features & Specifications
  • Type: Medium Voltage DIN Fuse, Single Barrel, Ferrule Connection
  • Voltage Rating: 5500V
  • Current Rating: 200A
  • Dimensions: 20.078 in x 2.992 in x 2.992 in (L x H x W)
  • Standards: Class E Rating
  • Applications: Motor Protection, Transformer Protection, Feeder Circuits
  • AIC rating: 65kA @ 5.5kV
  • Diameter: 2 in
  • Clip Center: 17.4 in
  • Barrels: 1
  • Connection: Ferrule
  • Weight: 10.46 lb


Product Identification
  • UPC: 005171269206
  • GTIN: 00051712692069
