Bussmann 55GFMSJ150E - Medium Voltage DIN Fuse 150A 5500V
Bussmann 55GFMSJ150E - Medium Voltage DIN Fuse 150A 5500V
Bussmann 55GFMSJ150E - Medium Voltage DIN Fuse 150A 5500V
Bussmann 55GFMSJ150E - Medium Voltage DIN Fuse 150A 5500V

Bussmann 55GFMSJ150E - Medium Voltage DIN Fuse 150A 5500V

Bussmann
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

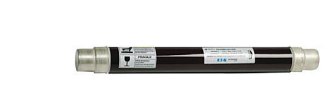

The Bussmann 55GFMSJ150E is a medium voltage DIN-style fuse designed for overcurrent protection in industrial power distribution systems up to 5500V. It features a 150A current rating and a high interrupting capacity of 65kA at 5.5kV, ensuring reliable protection against fault currents. The fuse is constructed with a single-barrel ferrule connection, measures 20.078 inches in length with a 2-inch diameter, and has a clip center spacing of 17.4 inches. It complies with Class E rating standards and is engineered for demanding applications such as motor protection and transformer feeder circuits in medium voltage switchgear.

Key Features & Specifications
  • Type: Medium Voltage DIN Fuse, Single Barrel, Ferrule Connection
  • Voltage Rating: 5500V
  • Current Rating: 150A
  • Dimensions: 20.078 in L x 2.992 in H x 2.992 in W
  • Standards: Class E Rating
  • Applications: Industrial Power Distribution, Motor Protection, Transformer Feeder Circuits
  • AIC Rating: 65kA @ 5.5kV
  • Clip Center: 17.4 in
  • Diameter: 2 in
  • Weight: 10.449 lb


Product Identification
  • UPC: 005171269204
  • GTIN: 00051712692045
