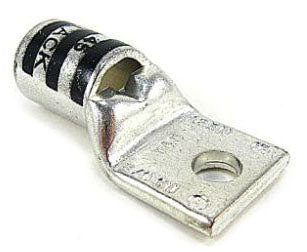

Thomas & Betts 54158 - Copper Lug 35 kV (2/0 AWG)
Thomas & Betts 54158 - Copper Lug 35 kV (2/0 AWG)

Thomas & Betts 54158 - Copper Lug 35 kV (2/0 AWG)

Thomas & Betts
Price
Save $63.28
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Thomas & Betts 54158 is a copper one-hole lug designed for secure electrical terminations in high-voltage applications. It is rated for a maximum voltage of 35 kV and accommodates 2/0 AWG copper conductors. The lug features a standard barrel with a peep hole for inspection, measures 0.83" x 1.65" with an overall length of 1.88 inches, and weighs 7 lb. It is CSA Certified and UL Listed, ensuring compliance with rigorous industry standards. This component is typically used in industrial power distribution and connection systems.

Key Features & Specifications
  • Type: One-Hole Lug
  • Conductor Size: 2/0 AWG
  • Material: Copper
  • Finish: Tin Plated
  • Barrel Type: Standard
  • Bolt Hole Size: 5/16 inch
  • Color Code: Black (Die Code 45)
  • Maximum Voltage: 35 kV
  • Peep Hole for inspection
  • Overall Length: 1.88 inches
  • Mounting Hole Size: 0.344 inches
  • Dimensions: 0.83" x 1.65" x
  • Weight: 7 lb
  • Certification: CSA Certified, UL Listed
  • Country of Origin: Mexico


Product Identification
  • UPC: 786210541587
