Thomas & Betts 5358 - 2.5" 90° Liquidtight Conduit Connector
Thomas & Betts 5358 - 2.5" 90° Liquidtight Conduit Connector

Thomas & Betts 5358 - 2.5" 90° Liquidtight Conduit Connector

Thomas & Betts
Price
Save $215.22
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

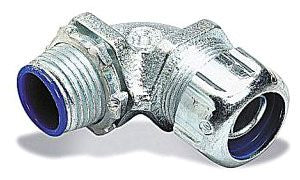

Thomas & Betts 5358 is a 2-1/2 inch, 90-degree insulated liquidtight conduit connector designed to provide a secure, bonded connection for liquidtight flexible metal conduit to boxes or enclosures in wet or dry locations. This connector is constructed from malleable iron with an electro zinc plated and chromate coated finish for corrosion resistance, and it features a 2-1/2 inch NPT threaded connection with heat curled insulators to protect wire sheathing and a double bevel sealing ring for a reliable seal. It complies with UL 514B and CSA C22.2 No. 18.3 standards, meets IEC 61386-1 and -23 requirements, and is CE certified, with UL Listed type ratings tested to UL 50E and NEMA 250 Type 3, 3R, 4, 12, and 13 ingress protection ratings. The connector operates safely in temperatures from -20 to +105°C (-4 to +221°F) and is suitable for industrial applications requiring a durable, moisture-resistant conduit connection.

Key Features & Specifications
  • Manufacturer: Thomas & Betts
  • Family: 53 Series
  • Weight: 1 lb
  • Material: Malleable Iron
  • Finish: Electro Zinc Plated/Chromate Coating
  • Size: 2-1/2 Inch
  • Angle: 90 Degree
  • Thread Type: NPT
  • Insulated: Yes
  • Standards: UL 514B, CSA C22.2 No. 18.3, IEC 61386-1, -23, CE Certified
  • NEMA Ratings: Type 3, 3R, 4, 12, 13
  • Operating Temperature: -20 to +105°C (-4 to +221°F)
  • Application: Liquidtight Flexible Metal Conduit
  • Provides positive bonding to box or enclosure


Product Identification
  • UPC: 786210053585
  • GTIN: 00786210053585
