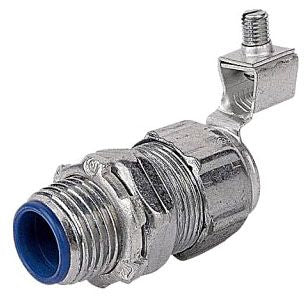

Thomas & Betts 5335GR - Grounding Bushing, 600V
Thomas & Betts 5335GR - Grounding Bushing, 600V

Thomas & Betts 5335GR - Grounding Bushing, 600V

Thomas & Betts
Price
Save $-111.22
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Thomas & Betts 5335GR is a grounding bushing designed for bonding and grounding metallic conduit systems to ensure electrical continuity and safety. This component is rated for use in systems up to 600 volts and accommodates a range of current capacities based on the connected grounding conductor. Constructed from malleable iron with a hot-dipped galvanized finish, it measures 2-1/2 inches in length by 2-1/4 inches in width and weighs 3.45 lb. The bushing conforms to UL 467, CSA 638, CSA C22.2 No. 18 and No. 41, Federal Spec W-F-406, Federal Std H-28 (Threads), JIC EGP1, JIC EMP1, NEMA FB-1, NFPA 70-1999 (ANSI), ULE23018, and ULE3060 standards. It is typically employed in industrial and commercial electrical installations for grounding rigid metal conduit and intermediate metal conduit.

Key Features & Specifications
  • Type: Grounding bushing, malleable iron, hot-dipped galvanized
  • Dimensions: 2-1/2 in L x 2-1/4 in W
  • Standards: UL 467, CSA 638, CSA C22.2 No. 18 and No. 41, Federal Spec W-F-406, Federal Std H-28 (Threads), JIC EGP1, JIC EMP1, NEMA FB-1, NFPA 70-1999 (ANSI), ULE23018, ULE3060
  • Applications: Bonding and grounding of rigid metal conduit and intermediate metal conduit in industrial and commercial systems
  • Metal Type: Malleable iron
  • Mounting: Conduit thread
  • Certification: UL, CSA, Federal, JIC, NEMA, NFPA


Product Identification
  • UPC: 786210900018
